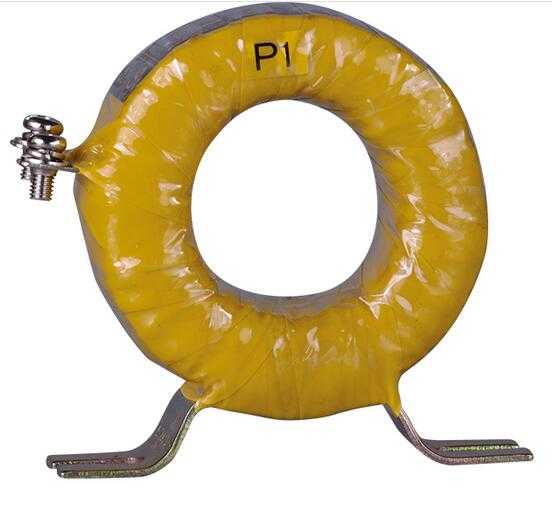

0.5 Class Lm-0.5 150A 5A Single Phase Indoor Current Transformer

LM-0,5 series indoor current transformer, it's used in the circuit, 50Hz, rated voltage 500V. For measurement of instruments, meter or relay protection, control device to transport signal, and measure, protect & control device to isolate from high voltage.

Product Details Company Profile

Description

Model NO.: LM-0.5
Type: Current Transformer
Operation Condition: Indoor
Insulating Medium: Insulating Paper
Magnetic Circuit Structure: Cascade Type
Rated Voltage: 500V
Rated Frequency: 50Hz
Customized Design: Yes
Transport Package: 16 PCS/Carton
Origin: Wenzhou Zhejiang

Application: Electronic, Instrument
Phase: Single
Usage: Protection
Installation: Active Type
Voltage Transformation Principle: Electromagnetic Type
Rated Secondary Current: 5A
Secondary Load Power Factor: 0.8(Delay)
Trademark: PEOPLE
Specification: CCC
HS Code: 850431100

Application
LM-0,5 series indoor current transformer, it's used in the circuit, 50Hz, rated voltage 500V. For measurement of instruments, meter or relay protection, control device to transport signal, and measure, protect & control device to isolate from high voltage.

Normal working & installment conditions
1.Temperature: -5ºC~+40ºC
2. Humidity: ≤80%
3. Altitude: ≤1000m
4. Mounting place: indoor place without metal dust or obvious shock

Specification

Rated voltage	500V
Rated frequency	50Hz
Rated primary current	10A, 12.5A, 15A, 20A, 25A,..,3000A
Rated secondary current	5A
Secondary load power factor	0.8 (delay)
Rated output	2.5VA, 5VA, 10VA,
Accuracy	0.5
Isolation resistance	isolation resistance of primary winding to secondary winding and to earth ≥20MΩ
Power frequency withstand voltage	Withstand valid value of primary winding to secondary winding and to earth ≥ 3kV
