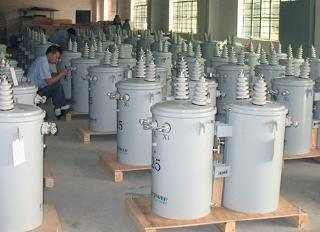

10kv GB/IEC Standard single phase 75kva pole mounted transformer

The dimension we offered is only for reference when selecting design type, the final dimension is subject to the outline of the product. Rated Frequency: 50/60HZ Cetifiate: ISO9001 Standard: GB/IEC

Product Details Company Profile

Description

Place of Origin: Shanghai, China (Mainland)
Brand Name: CHFE
Model Number: HXGN,XGN,RM6,SF6 Ring Main Unit
Rated voltage: 10kv
Rated Frequency: 50/60HZ
Cetifiate: ISO9001
Standard: GB/IEC

Specifications

Low loss
Long usage life
IEC standards
30 years original equipments manufacturer

Single phase pole mounted transformer

Specification

1)Specialize in transformer for 20 years
2)IEC60076,ISO,Type test reports
3)OEM Service Offered
4)Manufacturer

Product Description:
The Technical Data Of Full Auto-protective Single-phase Pole Mounted Transformers. Remark: The dimension we offered is only for reference when selecting design type, the final dimension is subject to the outline of the product.
Scope of application Single-phase Pole Mounted Transformer is specially designed for lighting and power of residential district and commercial area.

Technical Data

CAPACITY (KVA)	Eff n(%)	Voltage Reg. e(%)	Exciting Current Io(%)	Dimension			Insulating Oil (Liter)	Weight (kg)
CAPACITY (KVA)	Eff n(%)	Voltage Reg. e(%)	Exciting Current Io(%)	W (mm)	D (mm)	H (mm)	Insulating Oil (Liter)	Weight (kg)
10	97.8	3.0	1.9	370	520	940	30	100
15	98.1	3.0	1.8	450	530	970	30	130
25	98.4	2.8	1.7	500	580	980	40	180
37.5	98.6	2.6	1.6	520	600	1,000	40	220
50	98.7	1.9	1.5	540	630	1,060	45	280
75	98.8	1.8	1.4	590	670	1,100	55	380
100	98.8	1.7	1.3	680	680	1,120	60	450
167	98.8	1.6	1.2	710	800	1,190	80	580
250	98.9	1.5	1.1	980	950	1,350	200	980
333	98.9	1.4	1.0	1,040	960	1,400	235	1,100
• Dimensions might be changed for optimum design.
