Description
- Dtandards: GB1094-1996; JB/T10088-2004; GB/T10228-2008; EQV IEC726
2. Capacity Range: 80-2500kVA
3. Voltage Grade: 6, 11kV
4. Voltage Regukation Mode: Off circuit tap changing; On load tap changing
5. tapping Range: ±5%, ±2×2.5%, ±4×2.5% or others
6. Frequency: 50Hz; 60Hz
7. Phase: Three phase
8. Connection Sign: Yyn0, Dyn11 or others
9. Short Circuit Impedance: Standard impedance (For details see technical data sheet)
10. Max. Temperature: 145K
11. Cooling Method: AN or AF
12. Insulation Class: Grade H
Technical Parameters:
|
Rated Capacity
|
Voltage Group(kV)
|
Connection Method
|
Loss(kW)
|
No-load Current
|
Impedance Voltage
|
Insulation Level
|
Weight (kg)
|
Outline Dimension
|
Outline Dimension with Protective Casing
|
|
|
(120°C)
|
(L)
|
(W)
|
(H)
|
(L)
|
(W)
|
(H)
|
|
(kVA)
|
HV
|
LV
|
No-load
|
Load
|
%
|
%
|
(mm)
|
(mm)
|
|
10
|
15
11
10.5
10
6.3
6
|
0.4
|
Dyn11
Yyn0
Dyn5
|
0.135
|
0.305
|
4
|
4
|
F/F
|
130
|
600
|
450
|
490
|
900
|
800
|
850
|
|
20
|
0.17
|
0.595
|
3.5
|
170
|
600
|
450
|
560
|
900
|
800
|
850
|
|
30
|
0.195
|
0.705
|
2.6
|
330
|
620
|
450
|
650
|
1050
|
900
|
1000
|
|
50
|
0.27
|
0.995
|
2.2
|
380
|
620
|
450
|
750
|
1050
|
900
|
1000
|
|
63
|
0.33
|
1.21
|
2.2
|
440
|
750
|
500
|
760
|
1050
|
1000
|
1150
|
|
80
|
0.37
|
1.38
|
2.2
|
510
|
750
|
500
|
760
|
1100
|
1000
|
1150
|
|
100
|
0.4
|
1.57
|
2
|
590
|
750
|
500
|
890
|
1150
|
1100
|
1250
|
|
125
|
0.47
|
1.85
|
1.8
|
650
|
1060
|
600
|
1020
|
1350
|
1050
|
1200
|
|
160
|
0.545
|
2.13
|
1.8
|
780
|
1060
|
600
|
1060
|
1400
|
1050
|
1250
|
|
200
|
0.625
|
2.53
|
1.6
|
930
|
1060
|
710
|
1120
|
1450
|
1100
|
1350
|
|
250
|
0.72
|
2.76
|
1.6
|
1040
|
1100
|
710
|
1140
|
1500
|
1150
|
1400
|
|
315
|
0.88
|
3.47
|
1.4
|
1180
|
1150
|
710
|
1195
|
1500
|
1200
|
1450
|
|
400
|
0.975
|
3.99
|
1.4
|
1450
|
1260
|
870
|
1285
|
1600
|
1250
|
1600
|
|
500
|
1.16
|
4.88
|
1.4
|
1630
|
1290
|
870
|
1355
|
1600
|
1300
|
1650
|
|
630
|
1.345
|
5.87
|
1.2
|
1900
|
1450
|
870
|
1420
|
1800
|
1300
|
1700
|
|
630
|
1.3
|
5.96
|
1.2
|
6
|
1900
|
1500
|
870
|
1370
|
1850
|
1300
|
1650
|
|
800
|
1.52
|
6.955
|
1.2
|
2290
|
1550
|
870
|
1570
|
1900
|
1300
|
1800
|
|
1000
|
1.77
|
8.13
|
1.1
|
2700
|
1600
|
870
|
1665
|
1950
|
1300
|
1950
|
|
1250
|
2.09
|
9.69
|
1.1
|
3130
|
1680
|
1120
|
1765
|
2050
|
1350
|
2000
|
|
1600
|
2.45
|
11.73
|
1.1
|
3740
|
1750
|
1120
|
1860
|
2100
|
1400
|
2100
|
|
2000
|
3.32
|
14.45
|
1
|
4150
|
1770
|
1120
|
1865
|
2150
|
1500
|
2100
|
|
2500
|
4
|
17.17
|
1
|
4810
|
1870
|
1120
|
1950
|
2200
|
1500
|
2200
|
|
3150
|
5.14
|
22.5
|
0.8
|
8
|
5800
|
1950
|
1120
|
1900
|
2350
|
1600
|
2250
|
|
4000
|
5.96
|
27
|
0.8
|
7100
|
2100
|
1120
|
2050
|
2400
|
1600
|
2300
|
|
Note: (Tapping range of high voltage) ±5%; ±2×2.5%, Frequency: 50Hz,60HZ.
|
Features:

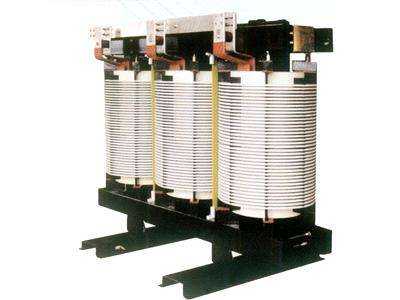

SG(B) type distribution transformer is suitable for the using in the adverse circumstances of high requirement for fire protection, high degree of load fluctuation and dirty, moist, such as airport, power plant, metallurgy, hospital, skyscraper, shopping center, and residential areas and other special enviro nments like oi l, chem ical industry, nuclear power plant, nuke, etc
Have strong withstanding of thermal shock, overload capability
Have many good points such as flame-retardant, Iow-loss, and Iow partial discharge capacity, Iow noise, no harmful gas and no pollution
