• Place of Origin: Zhejiang, China (Mainland)
• Brand Name: JSM
• Model Number: SGB10
• Usage: Power
• Phase: Three
• Coil Structure: Toroidal
• Coil Number: Autotransformer
• Rated capacity: 315KVA~2500KVA
• Frequency: 50/60Hz/customize
• Rated voltage: 11kV
• Output voltage: 0.4kv/0.69kv
• Type: Dry type
• Coil Number:: Duplex winding
• Certification: ISO9001:2008
• Standard: IEC60076
• Materia: Copper

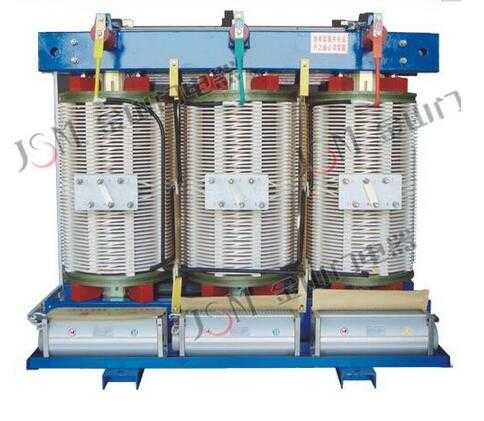

• Name: 400kv power transformer

1. Standards: GB1094-1996; JB/T10088-2004; GB/T10228-2008; EQV IEC726

2. Capacity Range: 80-2500kVA
3. Voltage Grade:6,11kV
4. Voltage Regukation Mode: Off circuit tap changing; On load tap changing
5. tapping Range: ±5%, ±2×2.5%, ±4×2.5% or others
6. Frequency: 50Hz; 60Hz
7. Phase: Three phase
8. Connection Sign: Yyn0, Dyn11 or others

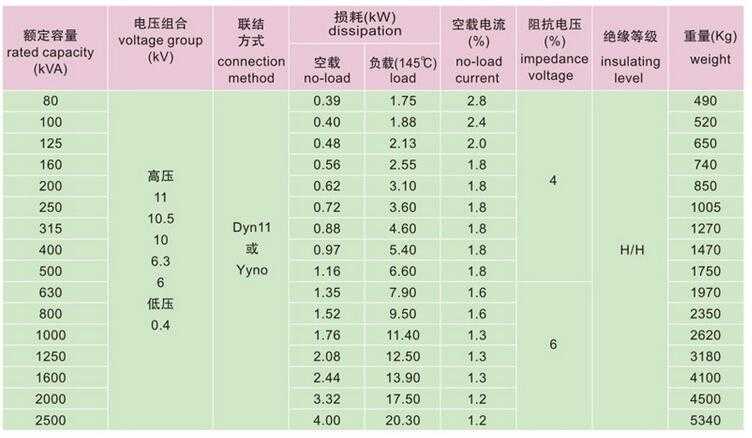

9. Short Circuit Impedance: Standard impedance (For details see technical data sheet)
10. Max. Temperature: 145K
11. Cooling Method: AN or AF
12. Insulation Class: Grade H
