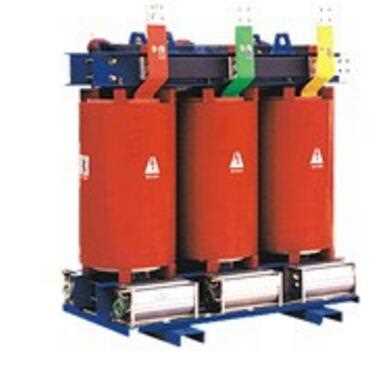

11kv 12kv SCB10 3 phase 500kva 630kva 1500kva dry type transformer

Certificate: ISO9001; Voltage Level: 10KV; connection style: Yyn0/Dyn11; Standard: IEC60076;

Description

Place of Origin: Zhejiang, China (Mainland)
Brand Name: Consoexportimescheck**exportimes
Model Number: SCB10-630/12
Usage: distribution power
Phase: three
Type: Dry-type
Modle Number: SC(B)
shell: aluminium alloy/stainless steel
Frequency: Hz 50/60
Certificate: ISO9001
Voltage Level: 10KV
connection style: Yyn0/Dyn11
Standard: IEC60076

A. the material of iron corn is high magnetic flux cold rolled grain oriented silicon steel sheet，of which the thickness is less than 0.3 mm. Meanwhile，Protective resin covered on the surface of iron core for Moisture proof and rust proof.

B. The structure of low voltage winding is Cylindrical, which is made by copper foil. The high voltage winding has the structure of Multi-storey. The style of designing can improve the mechanical strength and the ability of Anti short circuit.

C. The cooling system equips low noise fans adapted by Temperature Controller to add 40% more capacity for the Transformer.

D. The Protection Level of the transformer executed by the standard of IP20 can defense the transformer from any items which the diameter is greater than 12 mm. To meet the needs of clients, the protection level can reach to IP23, which can defense ≤60 degree angle water falls.

E.No load loss and load loss of SC(B) 9 meet the standard of GB/T 10228-2008, however, the no load loss of SC(B) 10 is lower 10% of the standard of GB/T 10228-2008 and the load loss is lower than 5% of GB/T 10228-2008.
