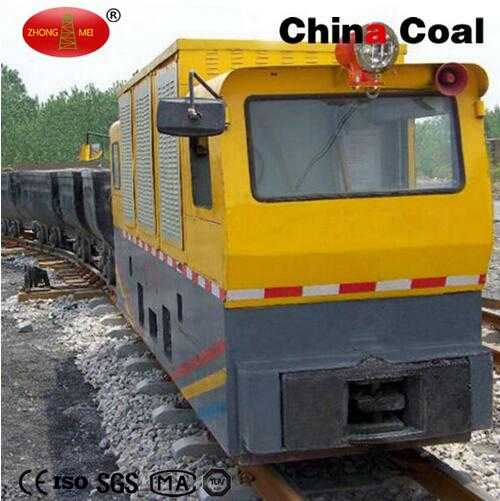

12t AC Frequency Underground Energy Saving Mining Locomotive

1.The locomotive is used for the coal mine whose annual production is over 1.2million tons. 2.It adopts V-shape rubber spring so that it can bear vertical, longitudinal and lateral shock. 3.12-ton battery locomotive has large battery capacity and thick steel plate body.

Product Details Company Profile

Description

Model NO.: CTY(L)12/6, 7, 9G
Structure: Belt Conveyor
Material Feature: Fire Resistant
Energy Saving: Energy Saving
Color: Multi Color
Condition: New
Adhesive Weight: 12tons
Traction: 16.48kn
Speed: 8.7km/H
Length: 5100mm
Height: 1600mm
Transport Package: Carton Box, Plastic Bagsor as Your Payment
Origin: China

Type: Bucket Conveyor
Material: Aluminium
Certification: ISO9001:2008
Warranty: 1 Year
Customized: Customized
Model: Cjy10/6,7,9g
Track Gauge: 600, 762 or 900mm
Max. Traction: 29.43kn
Power: 22kw*1
Width: 1050, 1212 or 1350mm
Trademark: China Coal
Specification: CE, SGS
HS Code: 8601101900

Introduction Of 12t AC Frequency Underground Mining Locomotive
Specifications
12T battery locomotive
1.large pulling force,
2.high rigidity, fast speed,
3.super carrying capacity

12T battery locomotive
1.The locomotive is used for the coal mine whose annual production is over 1.2million tons.
2.It adopts V-shape rubber spring so that it can bear vertical, longitudinal and lateral shock.
3.12-ton battery locomotive has large battery capacity and thick steel plate body.

Parameter Of 12t AC Frequency Underground Mining Locomotive

Fuel Type:	Electric	Horsepower:		16.48kN		Dimensions (L x W x H) (mm):	474010501600mm
Speed (km/h):	8.7km/h	Place of Origin:		Hunan, China (Mainland)		Brand Name:	chinacoal
Model Number:	CTY12/CTL12	Weight:		12tons		Track Gauge:	600/762/900mm
Ppwer:	22KW*2	Brake Model:		Air Brake
Model					CTY(L)12/6, 7, 9G
Adhesive Weight					12 tons
Track Gauge					600, 762 or 900mm
Traction					16.48kN
Max. Traction					29.43kN
Speed					8.7km/h
Power Supply Device			Voltage		192V
			Capacity		560Ah
Power					22kW*1
Size		Length			5100mm
		Width			1050, 1212 or 1350mm
		Height			1600mm
		Wheelbase			1220mm
		Wheel Diameter			Φ680mm
Min. Turning Radius					10m
Electromechanical Controller					Resistance, IGBT or AC Converter
Brake Mode					Mechanical and Pneumatic Brake
