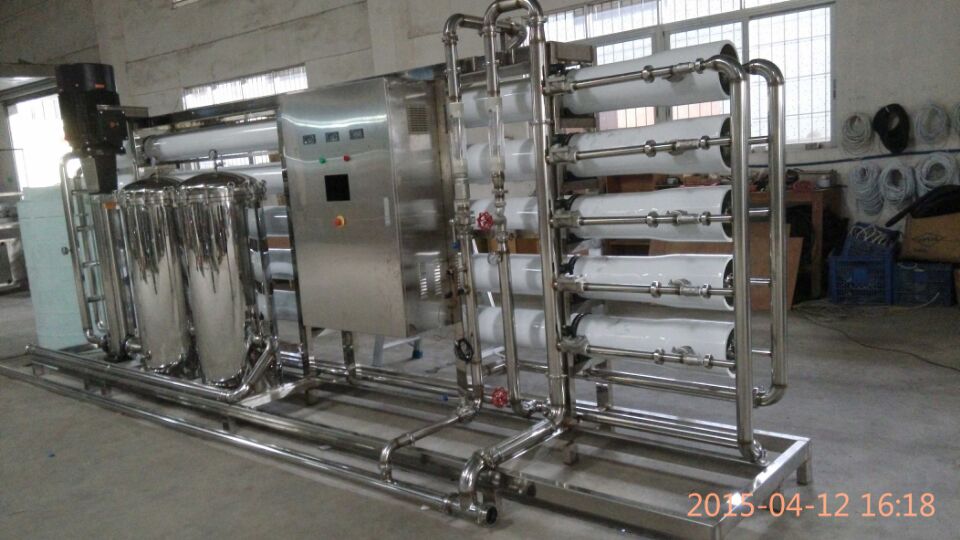

20T RO water treatment system

The system adopts automatic design which could make Mineral water/Drinking water/Pure water and monitor the water quality easily, meeting WHO standard and specific country standard.

Product Details Company Profile

Description

1. The RO water treatment plant process

Raw water→Raw water tank → Raw water booster pump→Mechanical filter (Quartz sand filter)→Activated carbon filter →Precise filter →High-pressure pump →Reverse Osmosis Components→Pure water tank

Specification for water treatment equipment
Capacity	Customized from 300L/H to 50T/H
Raw water pump	CNP
Reverse osmosis (RO)membrane	USA DOW
Membrane housing	stainless steel
Desalination rate	99.8%
Ion remove rate	99.99%
Recovery rate	55-75%
Security filter	Stainless steel
Control system	Siemens PLC control
Electricity components	Schneider/Omron from German
Certification	ROHS, SGS,CE,BV

Features for water treatment system
Raw water pump→ Multi-medium filter → activatedcarbon filter→ sodium-ion exchanger→ precision filter→ high pressure pump →Reverse osmosis→ Ozone sterilizer (UV) →ozone system
1.RO system refers to reverse osmosis system, the most advanced technique in water purifying machine.
2.This Equipment can be design for both small and large scale water factory according to the output.
3.A variety of protective measures are designed to defend system in case of poor power, larger electrical current, no power, short circuit, creepage of electricity etc.

Features for water treatment system

Raw water pump→ Multi-medium filter → activatedcarbon filter→ sodium-ion exchanger→ precision filter→ high pressure pump →Reverse osmosis→ Ozone sterilizer (UV) →ozone system

1.RO system refers to reverse osmosis system, the most advanced technique in water purifying machine.

2.This Equipment can be design for both small and large scale water factory according to the output.

3.A variety of protective measures are designed to defend system in case of poor power, larger electrical current, no power, short circuit, creepage of electricity etc.
