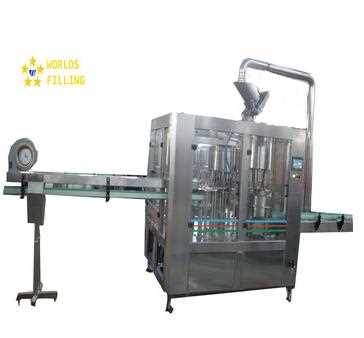

220V/380V mineral water filling machine line /mineral water plant

All the machine part which contact with liquid is high quality stainless steel 304. The relative fittings are from international famous brand.

Product Details Company Profile

Description

Type:Filling Machine

Condition:New

Application:Beverage

Packaging Type:Case

Packaging Material:Wood

Automatic Grade:Automatic

Driven Type:Electric

Voltage:220V/380V

Power:3KW

Place of Origin:Jiangsu, China (Mainland)

Brand Name:Worlds Filling

Model Number:CGF

Dimension(L*W*H):4600x2160x2500

Weight:5000

Certification:CE & ISO

After-sales Service Provided:Engineers available to service machinery overseas

Processing:Rising Filling Capping

Processing Type:Water

Material:Stainless Steel SUS304

Control:PLC

Color:Silver

Quality:Advanced Technology

Key words:bottled drinking water

Description:

Water filling machine is used to fill pure water, mineral water and other non-carbonated beverage.

All the machine part which contact with liquid is high quality stainless steel 304. The relative fittings are from international famous brand.

The water filling machine was equipped with suspension type air conveyor and frequency control of motor speed.

This machine is comprised of rinsing, filling and capping system. Rinsing: grip the bottle neck, rotate filling plate, inverse bottle; internal rinsing and external spraying make bottles be cleaned completely. Filling: gravity filling with holding bottle neck; the special backflow type of the filling valve can avoid leakage after filling and also control liquid level accurately. Capping: magnetic torque bottle holding type can minimize the cap damage rate and make the capping performance the best.

This machine owns the reasonable, stable and safe design. Under the condition that the bottle neck size is the same, only the output star wheel needs to be changed if bottles are different. It improves the efficiency a lot.

We are the water filling machines manufacturers from China.

Main Technical Data
Model	CGF12125	CGF18186	CGF24248	CGF323210	CGF404012	CGF505012	CGF606015	CGF808020
Number of washing, filling and capping heads	12-12-5	18-18-6	24-24-8	32-32-10	40-40-12	50-50-12	60-60-15	80-80-20
Production capacity(500ml) (B/H)	2000-4000	5000-7000	8000-12000	12000-15000	16000-20000	20000-24000	25000-30000	35000-40000
suitable bottle specification(mm)	φ=50-110 H=170 volume=330-2250ml
Washing pressure(kg/cm 2 )	2-3
Motor power(kw)	Main motor 2.2kw	Main motor 2.2kw	Main motor 3kw	Main motor 5.5kw	Main motor 7.5kw	Main motor 11kw	Main motor 15kw	Main motor 19kw
Overall dimensions (mm)	2400×1650 ×2500	2600×1920 ×2550	3100×2300 ×2800	3800×2800 ×2900	4600×2800 ×2900	5450×3300 ×2900	6500×4500 ×2900	76800×66400 ×2850
Weight (kg)	2500	3500	4500	6500	8500	9800	12800	150
