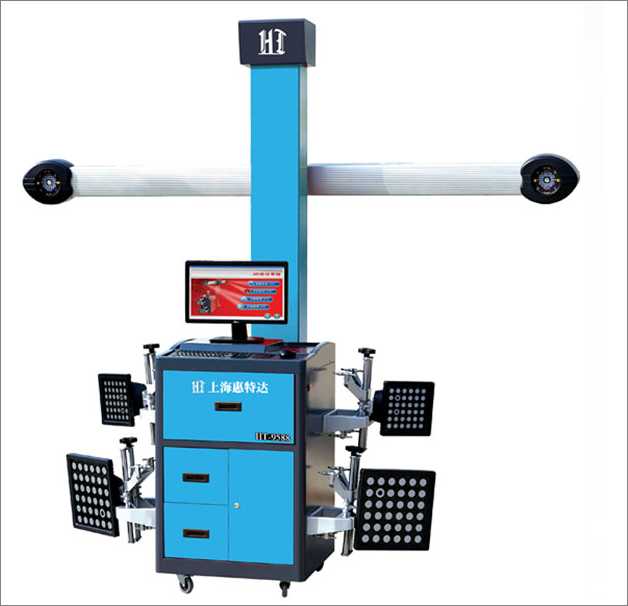

3D FOUR WHEEL ALIGNMENT MACHINE

MODEL NUMBER: HT-9588 Please contact us:yx@mec.com.cn

Description

Characteristics:

1.Three-dimensional related measurement,the lift flat levelness couldn't affect it,
the mesured value meet vehicle actual value,the adviser adjust precisely.
2.Besides realize all the function of photoelectricity position indicator,measure
wheel deviation and roller deviation distance parameters,especially for traffic accident cars'chassis measurement.
3.The product demarcated disposably when leave factory,put to use after installing.
4.Target disk has no electron component,no battery,no signal transmission,overall have high-stabiliby,lower-
failure rate,service life may keep 12 years.
5.Simple and convenient measurement operation,finishing parameter masurement only
depeng on pushing the car or rolling the wheel
6.Simple maintenance and care,upgrade equipment software free of charge.

Technical Data:

measurement item	precision	measurement range
display precise	1'/0.01	0.1mm
camber angle	±2‘	±10°
kingpin caster angle	±6’	±20°
kingpin inclination angle	±6‘	±20°
toe-in angle	±2’	±20°
shrink angle	±2‘	±5°
advance angle	±2’	±5°
wheel deviation	±2mm
roller deviation	±2mm
