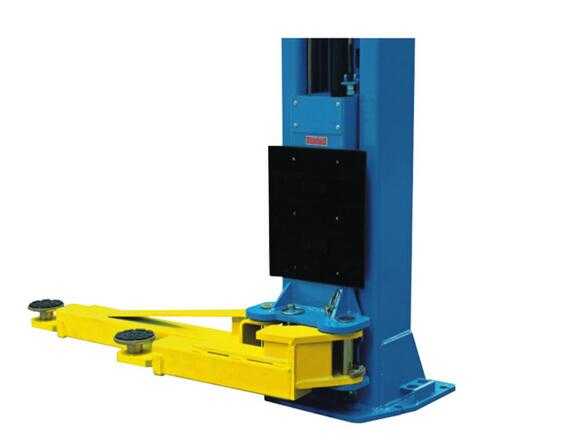

5.0T Heavy Duty Hydraulic Car Lift

1.11,000 Lbs Capacity; 2.Dual hydraulic cylinders, designed and made on ANSI standard, high quality NOK seals; 3.3/8" aircraft quality cable is used for synchronization; 4.Self-lubricating UHMW Polyethylene sliders and bronze bush.

Product Details Company Profile

Description

Lifting Capacity: 5.0t

Certification: CE

Double Cylinder Lift Type: Planer-type

Brand: Peak

Lifting Time: 55 Seconds

Motor: 2.0/3.0HP

Surface Treatment: Spray-Paint

Trademark: PEAK

Specification: 11, 000LBS

HS Code: 8425429000

Type: Double Cylinder Hydraulic Lift

Driving Type: Hydraulic

Driving Motor Number of Mechanical Lift: 1

Condition: New

Design: Two Post

Lifting Height: 1842-2071mm (72 1/2" - 81 1/2")

Gross Weight: 865kg (1,906 Lbs)

Color: Blue

Transport Package: Iron Bracket

Origin: Foshan, China

Feature
• 11,000 Lbs Capacity

• Dual hydraulic cylinders, designed and made on ANSI standard, high quality NOK seals.

• 3/8" aircraft quality cable is used for synchronization.

• Self-lubricating UHMW Polyethylene sliders and bronze bush.

• Single-point safety release, and dual safety design.

• Clearfloor design, provide unobstructed floor space.

• Overhead safety shutoff device.

• Both symmetric and asymmetric arms configuration.

• Stackable rubber pads with 1.5" , 2.5" and 5" adaptors for truck.

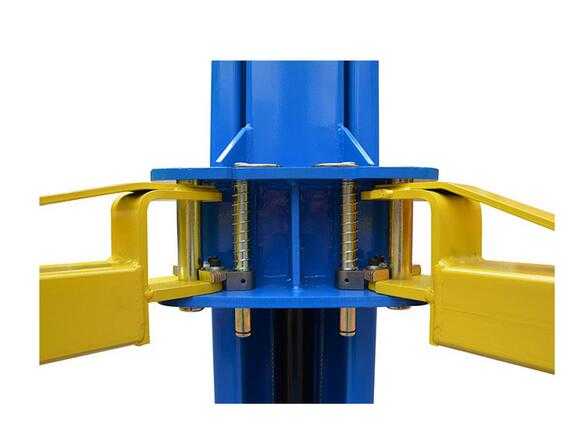

•Automatic arms restraints.

• Hydraulic power unit.

•Long warranty period:

5 Years warranty on lift structure(including Columns, Carriage, Lifting Arms, Top Beam, Floor Cover, Platform, Cross Beam, Car Drive-in Ramp, Scissor, Baseframe etc.);

2 Years warranty on the hydraulic parts (including cylinders, oil seal, oil hose, fitting etc.);

1 Year warranty on the spare parts, electrical components, power unit (not including consumption parts such as rubber pad).

211C 5.0T Heavy Duty Hydraulic Hoist For Car

A	Lifting Height	1842-2071mm(72 1/2"- 81 1/2")
B	Overall Height	3635/3735mm(143 1/8"/147")
C	Overall Width	3492mm(137 1/2")
D	Drive-Thru Clearance	2445mm(96 1/4")
E	Width Between Columns	2800mm(110 1/4")
F	Minimum Pad Height	115mm(4 1/2")
Gross Weight		865kg (1,906 lbs)
Motor		2.0/3.0HP
Packing Dimension		2890 x 540 x 765mm
QTY of Container		20 Units/20'GP
QTY of Container		40 Units/40'GP
