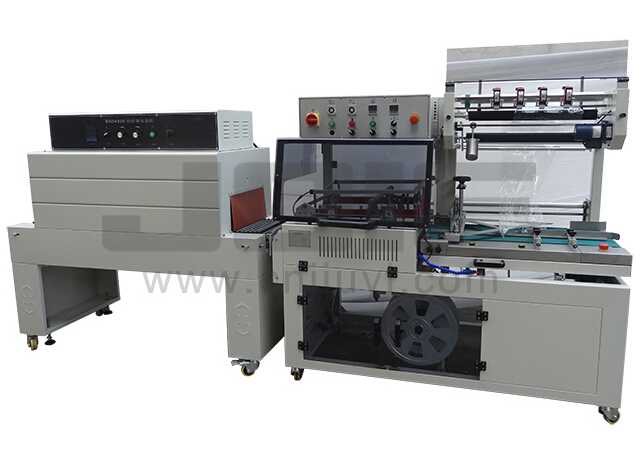

BS-560A AUTOMATIC L-BAR SEALER

Matching with shrink tunnel can reach a high packing speed.

Description

Please contact us:chensong@mec.com.cn

Main performance & characteristics

1、High temperature and sticky free L bar sealing knife,sealing action without smoking and burned. Sealed part is tidy and clean.

2、Covering Teflon on the sealing knife

3、After sealing action,packing product go in the shrink tunnel automatically by the conveyor belt.

4、Sealing time is controlled accurately by time delay.

5、Adjustable film layer with needle device,it is able to fit different size film

6、Sealing knife has hot protection devices.

7、Matching with shrink tunnel can reach a high packing speed.

features

Shrinking machine with L-BAR seal is suitable for electrical products,hardware,software,food,printing products. medications,floor boards,ceramics,etc. Suitable for PVC.POF.PP film''''s using.

Technical parameter

Model	BS-560A
Sealing model	L-BAR
Voltage	380V/50-60Hz/3phase
max. packing speed	20 bags/min
sealing line size	570 x480mm
packing height	125mm
rated power	1.5kw
film type	POF folded film
Max. film size	530mm(width) x 280mm (outer diameter)
worktable height	780-850mm
air pressure	0.5Mpa(5 bar)
dimension(mm)	1600 x770 x1450mm
