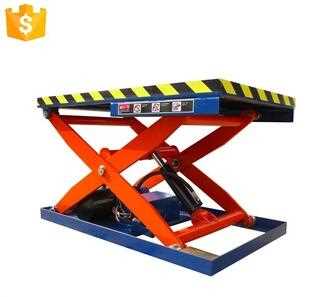

CE/ISO9001 1.5-4kw 10M 500kg Hydraulic scissor lifting platform

Application: Widely; Operated: Safety and convenience; Usage: railway stations,airports, bridges, inquiries and so on; Material: Steel;

Product Details Company Profile

Description

Place of Origin: Henan, China (Mainland)
Brand Name: Kcrane
Model Number: SJY
Lift Mechanism: Telescoping Lift
Lift Drive / Actuation: Hydraulic
Power: 1.5-4kw
Rated Loading Capacity: 300kg-3000kg
Min. Lifting Height: 1m
Max. Lifting Height: 20m
Table Size: 2000*1500mm
Overall Dimensions: 1200*800*1700mm---2500*1350*2300mm
Weight: 660kg-2220kg
Certification: ISO9001
Warranty: 12 Months
After-sales Service Provided: Engineers available to service machinery overseas
Product name: 10M 500kg Hydraulic lifting platform
Control distance: up to 100m
Temperature: -35°C___+80°C
Receiver powder: AC
Color: Customizable
Certificate: CE/ISO9001
Application: Widely
Operated: Safety and convenience
Usage: railway stations,airports, bridges, inquiries and so on
Material: Steel

Product show-- 10M 500kg Hydraulic lifting platform

1.Considering security problem, the platform generally is equipped with antiskid insulated plastic water

groove boards, easy to change.

2. Mobile hydraulic lift with artificial mobile hydraulic lift, electric portable hydraulic lift, the other with a

hand pump, used for power failure.

3. Mobile and flexible, smooth lifting, easy operation, large capacity.

4. The series mobile hydraulic scissor lifting platform with a multi purpose, indoor and outdoor use can

bewidely used in railway stations,airports, bridges, inquiries, internal and external mechanical plantinstallation,equipment maintenance, construction and maintenance and so on.

Main product:

Hydraulic lift platform, Aluminium lift platform,GTTY, Fluctuation freight elevator and so on.

MODEL	LIFTING HEIGHT(M)	LOADING CAPACITY (KG)	TABLE SIZE(LXW) MM	MAX MACHINE SIZE(LXWXH) MM	POWER (KW)	MACHINE WEIGHT(KG)
SJY0.3-4	4	300	1500X750	1850X900X1900	2.2	400
SJY0.3-6	6	300	1500X750	1850X900X1970	2.2	650
SJY0.3-8	8	300	1650X1000	2100X1200X2460	2.2	1200
SJY0.5-8	8	500	1980X1220	2500X1550X2380	2.2	1400
SJY0.8-8	8	800	2000X1220	2600X1550X2640	2.2	1700
SJY0.3-10	10	300	2100X1220	2700X1550X2380	2.2	1500
SJY0.5-10	10	500	2100X1220	2700X1550X2380	2.2	1600
SJY1.0-10	10	1000	2220X1220	2820X1720X2850	3	2380
SJY0.3-12	12	300	2550X1500	3150X1860X2850	2.2	2580
SJY0.5-12	12	500	2550X1500	3150X1860X2850	2.2	2780
SJY1.0-12	12	1000	2600X1500	3200X2015X3090	3	3580
SJY0.3-14	14	300	2990X1600	3600X2000X2850	2.2	3000
SJY0.5-14	14	500	2990X1600	3600X2000X2850	3	3200
SJY0.3-16	16	300	3230X1600	3700X2000X3030	3	3900
SJY0.3-18	18	300	3230X1600	3700X2000X3250	3	4500
SJY0.3-20	20	300	3230X1600	3700X2000X3450	3	5100
