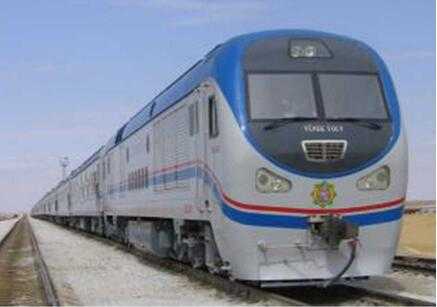

CKD9C Series CRRC Hangzhou 30-1600m freight diesel locomotive

CKD9C freight diesel locomotive is an AC-DC diesel-electric shunting trunk line freight transportaion diesel locomotive designed for Turkmenistan National Railways.

Product Details Company Profile

Description

Fuel Type: Diesel
Dimensions (L x W x H) (mm): 22240x3337x4736mm
Speed (km/h): 100km/h
Place of Origin: Zhejiang, China (Mainland)
Brand Name: CRRC Hangzhou
Model Number: CKD9C
Gauge: 1520mm
Axle load: 23±0.69t
Length: 22240mm
Width: 3337mm
Height: 4736mm

Product Application

CKD9C freight diesel locomotive is an AC-DC diesel-electric shunting trunk line freight transportaion diesel locomotive designed for Turkmenistan National Railways. The locomotive is equipped with16V240ZJB diesel engine, TQFR-3000 synchronous main generator and ZQDR-410 traction motor. The diesel engine is controlled by microcomputer system and equipped with rheostatic braking equipment with full power and self-loading trial functions, with maximum power of 2,650kW 3,600HP and service power of 2,430kW 3,300HP.

Operation condition:

Ambient temperature: -40°C~+50°C
Altitude: 30-1600m
Relative humidity: 20%~100%
Max. gradient: 9.8‰

	Main technical parameters:
	Clearance	In accord with 1T TOCT9238-83
	Axle arrangement	C0-C0
	Wheel diameter	Φ1050mm
	Calculated service weight	(138±4.14)t
	Wheel base	(1800+1800)mm
	Rated power of engine(UIC condition)	2650kW (3600HP)
	Service power	2430kW (3300HP)
	Max. service speed	100km/h
	Continuous speed	21.6km/h
	Max. starting traction force	435KN
	Continuous traction force	324kN
	Min. curve radius	125m
	Fuel tank	9000L
	Volume of engine oil	1200kg
	Water tank	1200kg
	Volume of sand	800kg
