Chinese standard factory price steel rails

1.Chinese standard:GB2585— 81; 2.Good quality with competitive price; 3.Rich supply experience in recommend type, package,delivery and sea transportation.

Product Details Company Profile

Description

Standard:AISI, ASTM, BS, DIN, GB, JIS

Grade:Q235/55Q/U71Mn/75V/50Mn/45Mn

Rail Heigth:63.5-192mm

Bottom Width:63.5-170mm

Web Thickness:5.9-44mm

Head Width:25-120mm

Length:6-12.5m

Place of Origin:Henan, China (Mainland)

Brand Name:NEWLD

Model Number:Customized as per your demand

Type:Heavy Rail, GB/Foreign standard

Application:Railway Rail

Weight:38kg -118kg

Secondary Or Not:Non-secondary

Bolt Hole Diameter:63.5mm - 170mm

Certificate:CE, SGS, ISO9001

Key words:rails for trailer

Warranty:12 months for rails for trailer

Kinds:heavy/ light

Usage:Industrial

Feature:High quality with low cost

Advantage:free provide technical and drawing for rail installation

Size:Reqeust

Packaging & Delivery

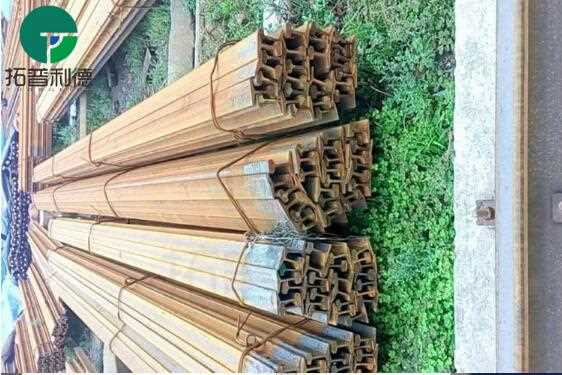

Packaging Details:Rails are bundled into the container, and parts are into the high quality wooded case.

Delivery Time:7-10 days after getting advance payment

The rails we can provide as following:

Model	Height(mm)	Bottom (mm)	Head (mm)	Web(mm)	Length per piece (m)	Material
8kg/m	65	54	25	7	6	Q235
15kg/m	79.37	79.37	42.86	8.33	6-10	Q235/55Q
18kg/m	90	80	40	10	6-10	Q235/55Q
24kg/m	107	92	51	10.8	6-10	Q235/55Q
30kg/m	107.95	107.95	60.33	12.3	6-10	Q235/55Q
38kg/m	134	114	68	13	12.5	45MN/U71MN
43kg/m	140	114	70	14.5	12.5	45MN/U71MN
50kg/m	152	132	70	15.5	12.5	45MN/U71MN
60kg/m	176	150	73	16.5	12.5	U71MN
QU70	120	120	70	28	12-12.5	U71MN
QU80	130	130	80	32	12-12.5	U71MN
QU100	100	150	100	38	12-12.5	U71MN
QU120	170	170	120	44	12-12.5	U71MN

Types of rails for trailer

1) Light rails for trailer, material:Q235, 55Q, Type:30kg/m, 24kg/m, 22kg/m, 18kg/m, 15kg/m, 12 kg/m, 8 kg/m;
2)Heavy rails for trailer, material:45MN, U71MN, Type:38kg/m, 43kg/m, 50kg/m;
3)Crane rail, material:U71MN, Type:QU70kg/m , QU80kg/m, QU100kg/m, QU120kg/m;
