1. 1. Clear Floor design, save space..
   2. Adopt double cylinder,4X4 higher and stronger chain, the wire rope balance system.
   3. Using electric lock.
   4. Rubber pad door-opening protection.
   5. Secure fence protect the toes.
   6. Rubber support with first,second and third level spiral to adjust the height.
   7. Limit switch.
   8. The arm adopts two stages or three stages design, larger range adjustment, suitable for different vehicles chassis.

   Technical specifications:

2. Lifting Capacity	4000kg
   Lifting Height	1750mm
   Min.Height	120mm
   Lifting Time	55-60s
   Motor Power	2.2kw
   Power Supply	220v/380v
   Weight	about 650kg

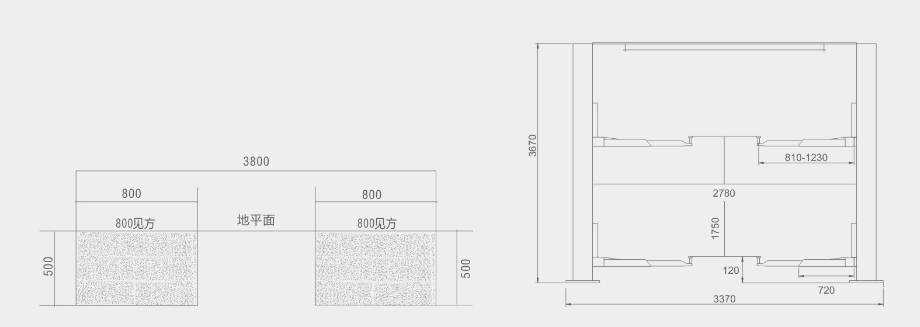

   Outline Dimensions	L3370*W500*H3670mm
