Combined oil press and filter
Applicable for pressing oil and oil filtration from vegetable seed, soybean, peanut, cotton seed, sunflower seed etc.
Please contact us:
leeli@mec.com.cn
Description

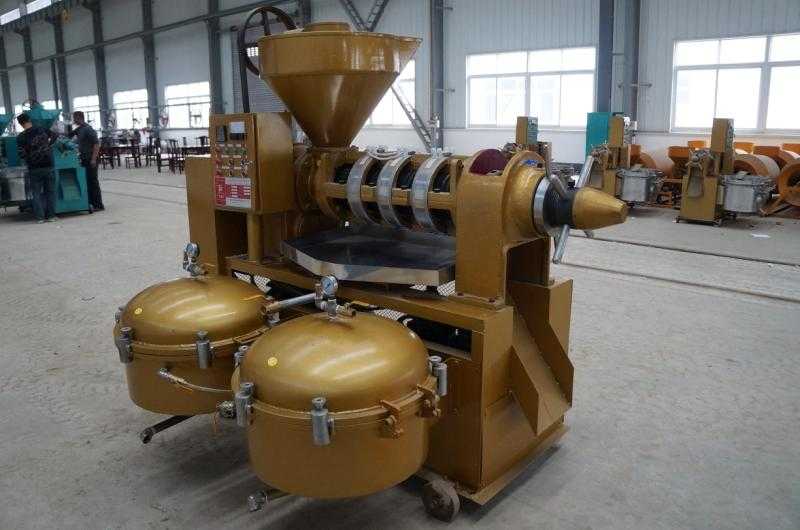

The automatic combined oil press with air pressure oil filter has combined functions of electric heating, oil pressing and oil filtrating. The crude oil after press will flow out of the press cage and then directly enter into the air pressure filter machine for filtration. The oil filter machine adopts compressed air as power, which has strong filtration capability.
Technical parameters
|
Item
|
ZHZYJ-90
|
ZHZYJ-100
|
ZHZYJ-120
|
ZHZYJ-130
|
ZHZYJ-140
|
|
Processing capacity (t/24h)
|
≥3.5
|
≥4.5
|
≥6.5
|
≥8
|
10
|
|
Residual oil ratio of dry cake (%)
|
≤8.0
|
≤8.0
|
≤8.0
|
≤8.0
|
≤8.0
|
|
Oil pressing Power (kw)
|
7.5
|
11
|
15
|
18.5
|
22
|
|
Filtration power (kw)
|
1.5
|
1.5
|
1.5
|
1.5
|
1.5
|
|
Temperature control power (kw)
|
3.6
|
3.6
|
4
|
4
|
4
|
|
Size (mm)
|
1790*1520*1915
|
1890*1520*1915
|
1948*1522*1915
|
1948*1522*1915
|
2120*1350*1890
|
|
Rotation speed of spiral axes (r/mm)
|
32-40
|
32-40
|
34
|
34
|
32-38
|
|
Weight (kg)
|
1023
|
1075
|
1200
|
1400
|
1400
|
