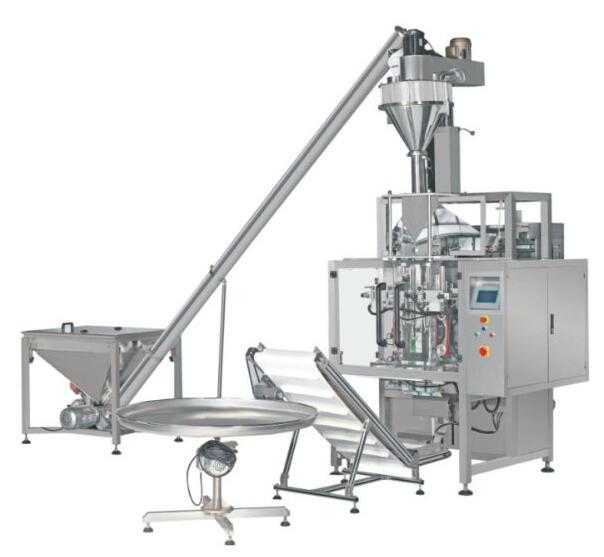

DXDF-820 Large Vertical Automatic Washing Powder Bag Packing Machine

This machine is widely used for packing the loose granules, like the coffee, monosodium glutamate, sugar, salt, desiccants, etc. via change the feeder, also suitable for packing powder, jam and liquid.

Product Details Company Profile

Description

Model NO.: DXDF-820
Application: Cleaning, Detergent, Cosmetics, Vegetable, Fruit, Fish, Meat, Snack, Rice, Flour
Forming Species: Bag Moulding
Driven Type: Electric
Packaging: Bag
Machine Type: Powder Packing Machine
Bag Form: 3 Side, 4 Side and Pillow Seal
Bag Length: 100-500mm(L)
Max Width of Roll Film: 820mm
Capacity(Bag/Min): 5~50times/Min
Trademark: Royal
Specification: 1600*1530*2110mm
HS Code: 8422400000

Automatic Grade: Automatic
Type: Filling and Sealing Machine
Forming Function: Forming, Filling, Seal
Material Type: Powder
Packaging Material: Film
Measure: Screw
Filling Range: 15L
Bag Width: 250-400mm(W)
Power Voltage: 380V 5kw
Machine Materials: Stainless Steel
Transport Package: Export Standard Package
Origin: Shanghai, China

Applications:
This machine is widely used for packing the loose granules, like the coffee, monosodium glutamate, sugar, salt, desiccants, etc. via change the feeder, also suitable for packing powder, jam and liquid.

Instruction and features:

Chinese or English screen display,(the countries words can according to the requirements of the customers).
Siemens PLC clearly show the working state, handle direction and so on, simple operation directly.
Siemens PLC system provides a stable work procedure.
It can stock ten dispose, fit to the change of the product packing fastly.
Using intellect thermostat, can control the temperature within 2ºC
Adjust the seal position in the touch screen, do not need to stop the machine, deviation and so on
Cooperate with horizontal grain tooth type sealing, packing more firms, also can choose straight grain, twill, cobwebbing and etc.
Use the CE installation standard, the protect standard can be IP65.
The packing function of a variety of bag type: such as: flat bags (three sides seal, four sides seal, and pillow bag), solid bag( jack stand-up punches, triangle bags),handbags, and punching bags.

Optional devices:

Guesst device
Hole punching device
"PE" film device
Dust cleaning device
Automatic deviation-checking equipment
Even the bag device
Vacuum bag system
Gas-filling device

Main Technical Specifications:

Type	DXD-820	DXD-720	DXD-520	DXD-420
Bag length	100-500mm(L)	100-400mm(L)	100-400mm(L)	100-300mm(L)
Bag width	250-400mm(W)	180-350mm(W)	150-250mm(W)	100-200mm(W)
Max width of roll film	820mm	720mm	520mm	420mm
Packing speed	5-50bag/min	5-50bag/min	5-50bag/min	5-50bag/min
Measuring range	15L	10L	6L	2.5L
Air consumption	0.65mpa	0.65mpa	0.65mpa	0.65mpa
Gas consumption	0.8m³/min	0.8m³/min	0.7m³/min	0.6m³/min
Power voltage	220V/380V	220V/380V	220V/380V	220V/380V
Power	5KW	5KW	4KW	3KW
Overall dimensions(LWH,mm)	160015302110	148013801850	139511501650	138811161536
Weight(Kg)	850kg	700kg	600kg	500kg
