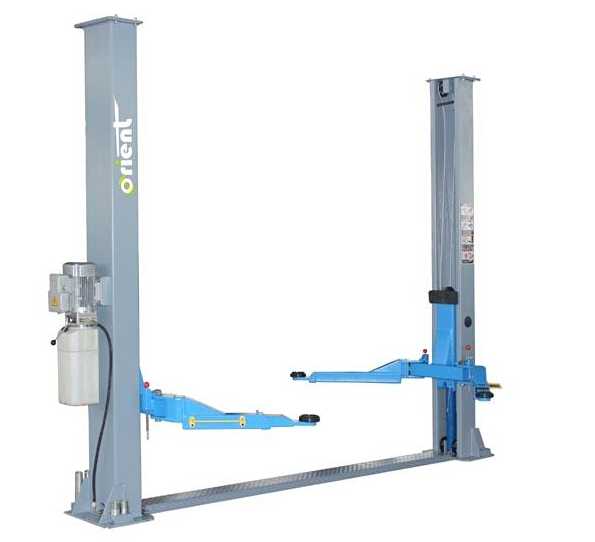

Double Cylinder Hydraulic Vehicle Lift

Floor plate design is ideal choice for low ceiling shop;by two cylinder ,plate and wire rope chain balances system,lifting off and landing smooth;hydraulic power unit configuration throttling device, can always djust the rate of decline. manual locked release from two sides.

Product Details Company Profile

Description

Model NO.: ORL-32Q

Lifting Capacity: 3200kgs

Certification: CE, ISO

Double Cylinder Lift Type: Planer-type

Brand: Orient

Max Lifting Height: 1900mm

Trademark: Orient

Specification: CE & ISO

HS Code: 84254290

Type: Double Cylinder Hydraulic Lift

Driving Type: Hydraulic

Driving Motor Number of Mechanical Lift: 1

Condition: New

Design: Two Post

Min Height: 110mm

Transport Package: Standard Export Packaging

Origin: China

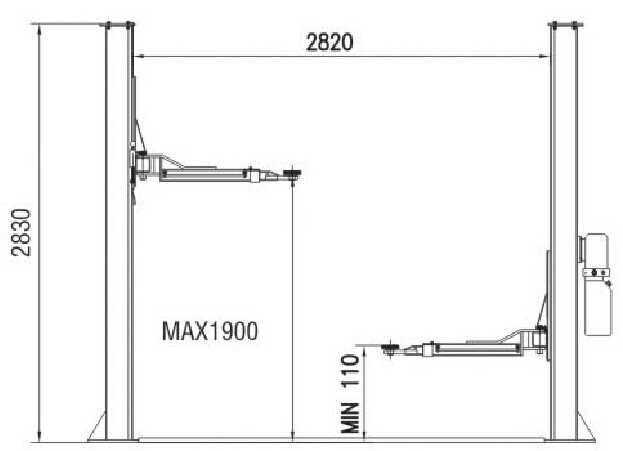

Lifting Capacity	3200kg
Max.Lifting Height	1900mm
Minimum Height	110mm
Lifting Time	40-45s
Overall Height	2830mm
Overall Width	3420mm
Width Between Columns	2820mm
Motor Power	2.2kw
Power Supply	220V/240V/380V/415V
weight	592kg/636kg
Packing Size	2900530770mm
