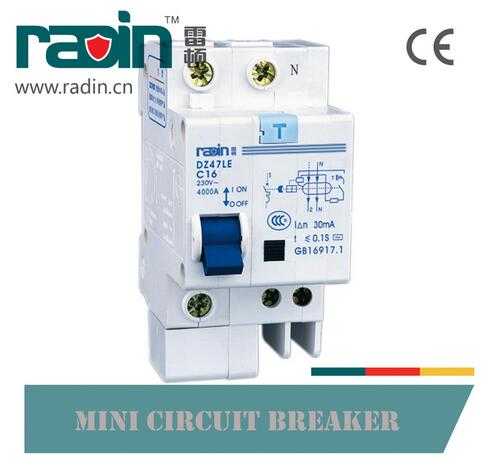

Dz47le-63 Series Leakage Miniature Mini Circuit Breaker 16A ELCB

DZ47LE-63 Series leakage miniature circuit breaker is mainly used in AC 50Hz/60Hz, rated voltage of 230V/400V,and rated current up to 63A for leakage,overload and short circuit functions,and also can add over-voltage,under-voltage and shunt protection functions as required.

Product Details Company Profile

Description

Model NO.: DZ47LE-63/C16
Operation: Manual Type
Arc-extinguishing Medium: Air
Structure: MCB
Type: Circuit Breaker
Certification: ISO9001-2000, CE, CCC
Number of Poles: 1p,2p,3p,4p
Transport Package: Carton Box
Origin: Zhejiang, China

Breaking Capacity: Low Voltage Circuit Breakers
Speed: High-Speed Circuit Breaker
Installation: Fixed
Poles Number: 1
Function: Conventional Circuit Breaker
Rated Current: 32A
Trademark: radin
Specification: CE, CCC
HS Code: 8536200000

Application

DZ47LE-63 Series leakage miniature circuit breaker is mainly used in AC 50Hz/60Hz, rated voltage of 230V/400V,and rated current up to 63A for leakage,overload and short circuit functions,and also can add over-voltage,under-voltage and shunt protection functions as required.

This product can be applied to various places such as industrial, commercial,tall buildings and residential houses.

The product meets the standards of GB16917.1 and IEC61009-1.

Structure Feature

DZ47LE-63 leakage miniature circuit breaker is made up of DZ47-63 high breaking capacity miniature circuit breaker and leakage release . The leakage circuit breaker is current action electronic type earth leakage circuit breaker. It is mainly including the zero sequence current transformer,electrical board,leakage release and overload and short-circuit circuit breaker.
