• Feature: Bridge Crane
• Condition: New
• Application: Warehouse
• Rated Loading Capacity: 1~32t
• Rated Lifting Moment: Lifting Weight
• Max. Lifting Load: 32t
• Max. Lifting Height: 3m~30m
• Span: 7.5-31.5m
• Place of Origin: Henan, China (Mainland)
• Brand Name: SINOGEARS
• Model Number: LD Single Girder Overhead Crane
• Warranty: 1 Year
• After-sales Service Provided: Engineers available to service machinery overseas

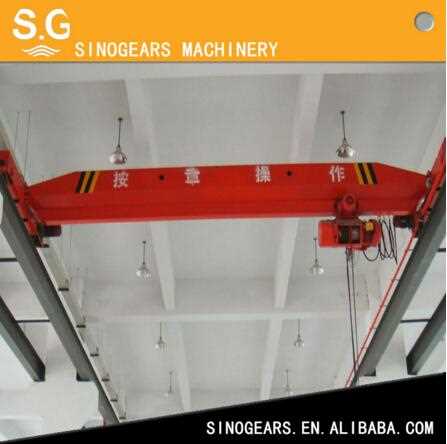

LD electric single girder bridge crane is a kind of light lifting equipment which uses CD1 or MD1 hoist, etc. Its lifting capacity is 1-20t with Max span from 7.5-22.5m.

The best working temperature is -25 ~ 40℃ with humidity less than 85%. It should works in the environment without fire, explosion and corrosive matters and it is prohibited to lift molten metal, toxic, flammable or explosive objects.

Main Structure:
1. Main metal structure: the main girder is made of steel plate which is formed into u-shaped slot after calendaring molding, the welded with I shape steel, constituting main box girder. The crossgirder is also box girder formed by welding u-shaped slot steel plates. The girders were joint by high-strength bolt to ensure stability;
2. Lifting system: the LD single girder electric crane is equipped with electric hoist which moves longitudinally along main girder;
3. Moving system: it adopts separated driving parts for moving and transmission. The moving of the hoist depends on the conical rotor motor, while the transmission replies on open-close type gears;
4. Electrical parts: the LD single girder crane uses cone-shaped motor with brake device. The control cabinet is DK2 type electrical control cabinet (ground operation) or protective cabinet with CAM controller for room controlling. The whole crane has safety device to guarantee high reliability.

In order to save your time, we need you to help us provide following information:
1. Which type of crane do you need?
2. FOB or CIF price?(If CIF price, please advise your destination port)
3. Quantity?(sets or pieces)
4. What's the ideal lifting capacity, lifting height and span?
5. What's the working voltage(V,HZ,Phase), and working environment?
6. Material need?
7. What's the material to be lifted?
8. Any other requirements do you need?

Parameters:
