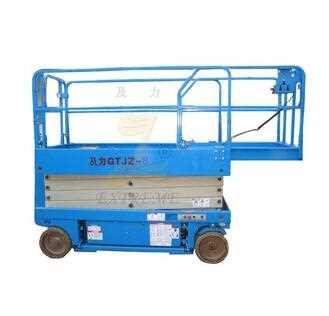

Extreme aluminium single mast hydraulic scissor lift platform

Max. Lifting Height: 11.75m; Table Size: 2.20mx0.8m 2.25mx1.0m 2.25mx1.0m; Weight: 1800kg-2400kg;

Description

Specifications

1.small size,big carrying capacity.
2.light weight.
3.easy to delivery.
4.steady to lift and down.
5.small swing scope.

Self-propelled scissors lifting machine

its advantage,small size,light weight,easy to delivery,steady to lift and down,small swing scope,big carrying capacity.

Very convenience to go in and out common door and elevator.
Use optional as power supply,or manual lift and down.Convenience to operate.

code	GTJZ-6	GTJZ-8	GTJZ-10
Platform height(m)	6.10 m	7.92m	9.75 m
Platform size(m)	8.10 m	9.92 m	11.75 m
Extention length(m)	2.20 m x 0.8 m	2.25 m x 1.0 m	2.25 m x 1.0 m
Guardrail height(m)	0.80 m	0.80 m	0.80 m
storage size(m)	1.0 m	1.10 m	1.10 m
Wheelbase(m)	2.45 m x0.81 m x 1.70 m	2.50m x 1.18m x 1.80m	2.50m x.1.18m x1.80m
Height form base to ground(m)	1.85 m	1.85 m	1.85 m
Chasm protection board	0.089 m	0.089 m	0.089 m
carrying capacity(m)	450 kg	350 kg	350 kg
Extention platform carrying capacity(kg)	115 kg	115 kg	115 kg
Biggest dtive speed(kw/h)	3.5 km/h	3.5 km/h	3.5 km/h
Raise/drop speed(m/s)	0.25 m/s	0.25 m/s	0.25 m/s
Climb slope capability	25%	25%	25%
Turn semidiameter(m)	2.50 m	2.50 m	2.50 m
Machine weight(kg)	1800 kg	2000 kg	2400 kg
	steady,single hand scale sticks
Drive	double front-wheel hydraulic pressure motor
stay brake	Two casters spring brake,Hydraulic prdeeure and manual release
Tyre(solid & no mark)	12Inch-15Inch no mark tyre

Motivity source(battery)	4 x 6v215Ah
Hyraulic pressure system capacity(kg)	20-25 L
