FOUR WHEEL POSITION SCISSOR LIFT
Model Number:HY-JSD-D-8540
please contact us:
yx@mec.com.cn
Description
- With electric hydraulic stations of bipolar auxiliary jack.
- Hydraulic synchronous control, synchronization precision.
- The hydraulic system adopts Italy electromagnetic valve and imports of seal, ensure the stability and service life of the machine.
- This machine is composed of a machine frame, hydraulic system, pneumatic system and electrics system is composed of four parts.
- Can be matched with various locating turntable.
Technical specifications:
| Lifting Capacity |
4000kg |
| Lifting Height |
Main:1700mm,Jck:450mm |
| Min.Height |
340mm |
| Lifting Time |
60s |
| Motor Power |
3ph:3.0kw 220v/380v,50/60hz |
| |
1ph:3.0kw 2p,220v,50/60hz |
| Air Supply Pressure |
0.6-0.8Mpa |
| Hydraulic Oil |
25Mpa-28Mpa |
| Weight |
2300kg |

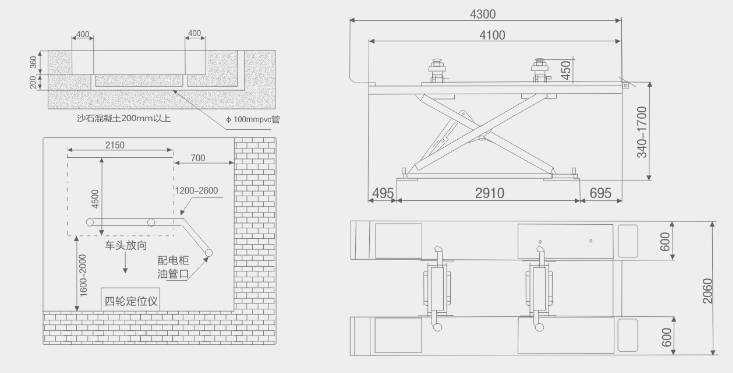

| Outline Dimensions |
L4100xW600xH340mm |
