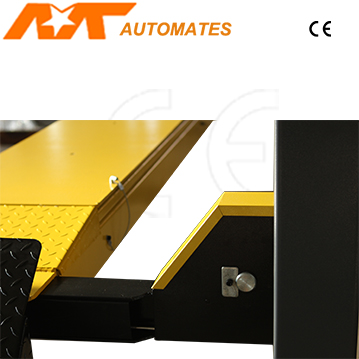

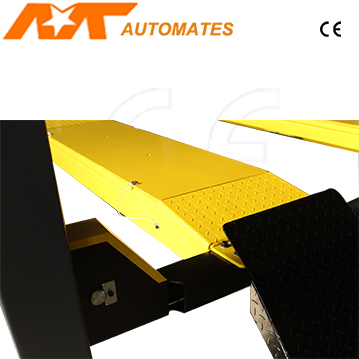

Four Post Lift MT-FP5050

Adopt hydraulic cylinder drive,rope drive,quiet and smooth lifting; Hydraulic power unit configuration throttling device,they can always Adjust the rate of decline; Manual lock release forms one side,more convenient to use; Adopt mechanical linkage with manual locks,four-point locking system.Easy to operate,can be locked in the desired height of oprations,safety and reliability; With wire control security lock set with a wire rope fracture protection,operational safety;

Product Details Company Profile

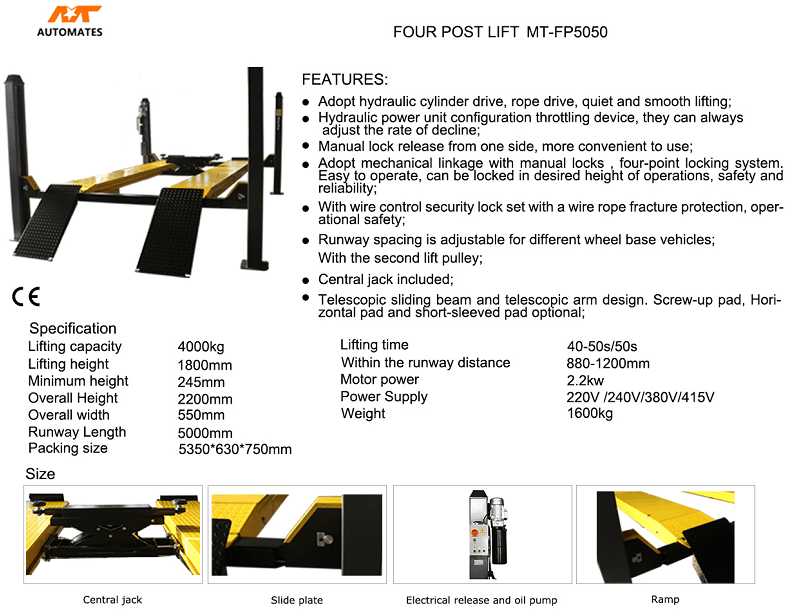

Parameter

Lift capacity : 4000kg

Lifting height : 1800mm

Min.height : 240mm

Lifting time : 40s-50s/50s

Weight : 1600kg

Motor power : 2.2kw

Overall height : 2200mm

Runway length : 5000mm

Runway width : 110v/230v/400v
