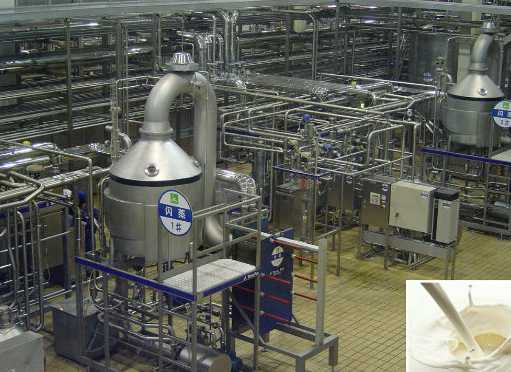

Full Set of Milk Production Line

This dairy processing milk plant raw milk can be fresh milk or powder milk

Description

Description of milk production plant

This dairy processing plant produce several types of market milk products, Whole milk, skimmed milk and standardized milk of various fat contents&period;

This dairy processing milk plant raw milk can be fresh milk or powder milk; the procedure method can be pasteurization or HTST pasteurizer or UHT processing&period;

End product package of this dairy processing milk plant can be plastic pouches, plastic cups, plastic bottles, glass bottles, roof top box, pre-pak pouches, paper carton etc&period; For this Milk processing line according to different end product and package type, the production technology is differently designed, but commonly include the following steps&colon;

Equipment list of 25T/D milk production plant (pasteurized milk\yogurt\cheese\cream\butter)

NO&period;	NAME	SIZE	MAIN TECHNOLOGY PARAMETER	UNIT	QTY
1	MILK RECEIVE\STORAGE\AND CREAM SEPARETOR UNIT
2	electron pound scale		maximum weighing 500KG	set	1
3	milk weighing tank	350L	made of SUS stainless steal,single layer,product feeded in through 40 mesh filter net,CIP cleaning ball	set	1
4	milk acceptor	500L	SUS304 stainless steel,single layer,CIP cleaning ball	set	1
5	milk pump	5T/h	SUS304 stainless steel,pump lift 24M,Hard Alloy Mechanical Seal,Inner Shell Bright-Polished	set	1
6	twin piping filter	5T/h	SUS304 stainless steel,two pipe,Stainless Steal Filter Element 100 Mesh	set	1
7	dish separator	5T/h	auto residue discharge	set	1
8	chiling tank	5000L	SUS304 stainless steel,alveolate jacket,attached with compressor	set	4
9	milk pump	5T/h	SUS304 stainless steel,pump lift 24M,Hard Alloy Mechanical Seal,Inner Shell Bright-Polished	set	1
10	PREPARING UNIT
11	blending tank	2500L	SUS304 stainless steel,heat insulated,top off- center votical agitator,conical head,airtight manhole, breather valve,digital readout thermometer,anti-eddy baffle,supporters with adjustable feet	set	2
12	milk pump	5T/h	SUS304 stainless steel,pump lift 24M,Hard Alloy Mechanical Seal,Inner Shell Bright-Polished	set	2
13	mini set of plate-type heat exchanger	5T/h	SUS304 stainless steel,two stages,	set	1
14	high speed emulsification tank	600L	SUS304 stainless steel,heat insulated,bottom high speed emulsifier,digital readout thermometer,supporters with adjustable feet	set	1
15	milk pump	5T/h	SUS304 stainless steel,pump lift 24M,Hard Alloy Mechanical Seal,Inner Shell Bright-Polished	set	1
16	twin piping filter	5T/h	SUS304 stainless steel,two pipe,Stainless Steal Filter Element 100 Mesh	set	1
17	sterilizing,homogenizing unit
18	UHT sterilizer	2T/h	tub-type,sterilzing temperature 137 C,holding time 4S,full automatic control	set	1
19	high pressure homogenizer	2T/h	40MPa,(starting box included)	set	1
20	temperature holding	2T/h	SUS304,holding 300S	set	1
21	distributing plate		SUS304,3 holes	set	1
22	cheese\butter processing unit
23	bufferying tank	2500L	SUS304 stainless steel,heat insulated,top off- center votical agitator,conical head,airtight manhole, breather valve,digital readout thermometer,anti-eddy baffle,supporters with adjustable feet	set	1
24	milk pump	5T/h	SUS304 stainless steel,pump lift 24M,Hard Alloy Mechanical Seal,Inner Shell Bright-Polished	set	1
25	cream seperator	1T/h		set	1
26	bufferying container	200L	SUS304,with cover	set	2
27	milk pump	3T/h	SUS304 stainless steel,pump lift 24M,Hard Alloy Mechanical Seal,Inner Shell Bright-Polished	set	2
28	butter-churner	150L	SUS304,stepless timing	set	1
29	cheese vat	1500L	SUS304,with heating jacket and insising device	set	1
30	pressor		SUS304,6 heads	set	1
31	mould		SUS304,10L,with cover	set	30
32	yogurt fermentation unit
33	fermentation tank	2500L	SUS304 stainless steel,heat insulated,top off- center votical agitator,conical head,airtight manhole, breather valve,digital readout thermometer,anti-eddy baffle,supporters with adjustable feet	set	3
34	rotary pump	10T/h	SUS304 stainless steel,Hard Alloy Mechanical Seal,manual stepless shift	set	1
35	plate cooler	10T/h	SUS304,single stage,milk discharge at 4C	set	1
36	rotary pump	1T/h	SUS304 stainless steel,Hard Alloy Mechanical Seal,manual stepless shift	set	1
37	filling unit
38	higher position tank	1000L	SUS304 stainless steel,heat insulated,top off- center votical agitator,conical head,airtight manhole, breather valve,digital readout thermometer,anti-eddy baffle,supporters with adjustable feet	set	1
39	pasteurized milk filling machine			set	1
40	yogurt filling machine			set	1
41	CIP system
42	semi-auto CIP system	4×1T	outer coat of SUS304 stainless steel material,inner shell of SUS316,single cleaning way,Concentrated acid/alcali tank adding system based on US technology, 100L×2 acid/alcali Concentrate tanks	set	1
43	CIP return pump	20T/h	SUS304 stainless steel,pump lift 24M,Hard Alloy Mechanical Seal,Inner Shell Bright-Polished	set	4
44			installation part
