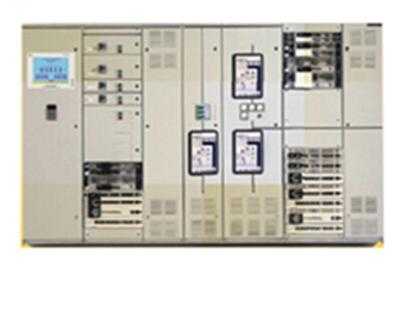

Gck Series 3 Poles Low Voltage Metal Clad Fixed Switchgear

GCK type low voltage switchgear (hereinafter referred to as the device) is suitable for AC 50Hz, rated working voltage 400V, rated current 4000A and below the low-voltage power grid, for power generation, transmission and distribution system as dynamic lighting, power conversion, Protection and Control and other occasions.

Product Details Company Profile

Description

Model NO.: GCK
Operation: Manual Type
Arc-extinguishing Medium: Vacuum
Structure: MCCB
Type: Circuit Breaker
Certification: ISO9001-2000, CE, CCC
Low Voltage Switchgear: IP31or IP54
Specification: CE, CCC, IEC
HS Code: 8537209000

Breaking Capacity: Low Voltage Circuit Breakers
Speed: Normal Type Circuit Breaker
Installation: Fixed
Poles Number: 3
Function: Conventional Circuit Breaker
Indoor Metal-Clad Enclosed Switchgear: Metal Clad Switchgear
Trademark: ZHENDA
Origin: Shanghai China

I Overview
GCK type low voltage switchgear (hereinafter referred to as the device) is suitable for AC 50Hz, rated working voltage 400V, rated current 4000A and below the low-voltage power grid, for power generation, transmission and distribution system as dynamic lighting, power conversion, Protection and Control and other occasions. All types of devices through pilot projects (TTA) and National Compulsory Certification (CCC), and after a long trial run assessment.
Device complies with GB7251.1-2005 and JB/T9961 standards.

II Environment conditions
- Indoor installation.
- The ambient temperature is not higher than +40 ºC, not less than -5 ºC, and 24h average temperature does not exceed the +35 ºC.
- Air cleaner, the relative humidity at the highest ambient temperature of +40 ºCnot more than 50% in the lower temperature allows a higher humidity, as in +20 ºC, relative humidity of 90%, and allows accidental temperature changes a small amount of condensation produced:
- Altitude does not exceed 2000m.
- Pollution degree: 3.
- during transportation and storage temperature of -25 ºC~ +55 ºC, in a short time (less than 24h) up to +70 ºC.
- Device used in some of the electrical components and accessories do not meet these conditions and conditions of use do not match with the normal conditions, by the manufacturer and user consultation.

III Technical parameters

Rated voltage Ue V		400 400
Rated insulation voltage Ui V		690 690
Rated current In A	The level bus	630~1600	1000~2500	2500~4000
	Vertical bus	1000,1250
Rated short time withstand current Icw(1s) kA	The level bus	30	50	80
	Vertical bus	30	50	50
Rated peak withstand current Ipk kA	The level bus	63	105	176
	Vertical bus	63	105	105
Protection class		IP30,IP40
