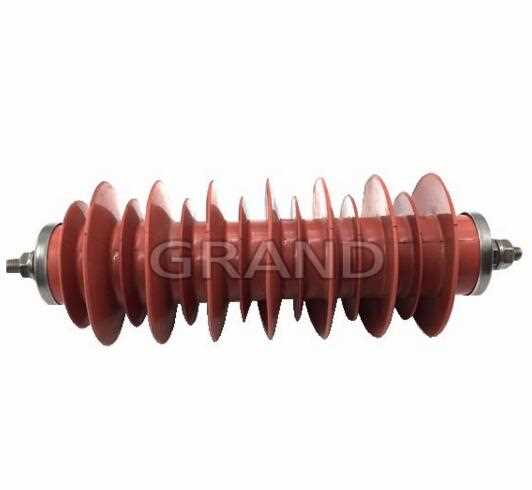

Grand Wholesale 42KV High Voltage Lightning Thunder Surge Arrester

Rated Voltage: 42KV Thunder arrester; Certificates: ISO9001:2008 and IEC; Color: Red or Grey or Customization;

Description

Type	Rated Voltage KV(rms)	MCOV KV(rms)	1/4 μs Lighting current impulse KV(crest)	8/20 μs Lighting current impulse KV(crest)	30/60μs Switching current impulse KV(crest)	2ms rectangular current impusle withstand KV(crest)	4/10μs Hight current impulse withstand KV(crest)
YH5W-3	3	2.55	11.3	9	8.9	150	65
YH5W-6	6	5.1	22.6	18	10.8	150	65
YH5W-9	9	7.65	33.7	27	23.8	150	65
YH5W-10	10	8.4	36	30	23	150	65
YH5W-11	11	9.4	40	33	30	150	65
YH5W-12	12	10.2	42.2	36	27	150	65
YH5W-15	15	12.7	51	45	38.5	150	65
YH5W-18	18	15.3	61.5	54	46.2	150	65
YH5W-21	21	17	71.8	63	54.2	150	65
YH5W-24	24	19.5	62	72	62	150	65
YH5W-27	27	22	92	81	69.8	150	65
YH5W-30	30	24.4	102	90	79	150	65
YH5W-33	33	27.5	112	99	86.7	150	65
YH5W-36	36	29	123	108	92.4	150	65
YH5W-42	42	34	144.9	126	107.1	150	65
YH10W-3	3	2.55	11.3	9	8.9	250	100
YH10W-6	6	5.1	22.6	18	10.8	250	100
YH10W-9	9	7.65	33.7	27	23.8	250	100
YH10W-10	10	8.4	36	30	23	250	100
YH10W-11	11	9.4	40	33	30	250	100
YH10W-12	12	10.2	42.2	36	27	250	100
YH10W-15	15	12.7	51	45	38.5	250	100
YH10W-18	18	15.3	61.5	54	46.2	250	100
YH10W-21	21	17	71.8	63	54.2	250	100
YH10W-24	24	19.5	62	72	62	250	100
YH10W-27	27	22	92	81	69.8	250	100
YH10W-30	30	24.4	102	90	79	250	100
YH10W-33	33	27.5	112	99	86.7	250	100
YH10W-36	36	29	123	108	92.4	250	100
YH10W-42	42	34	144.9	126	107.1	250	100
