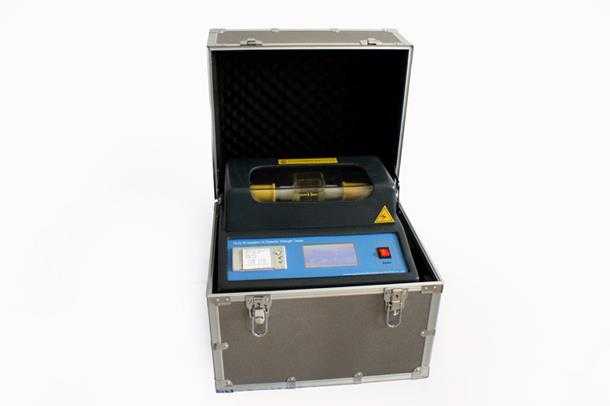

HZJQ-1 Protable 100kv High Voltage Transformer Oil BDV Test Kits

Automatic test system,safe and clean.

Description

1. trc. transformer oil BDV test equipment Insulating oil dielectric strength tester Features 1.Automatic test system,safe and clean. 2.Large-screen LCD 3.It is suitable by the function of adjustable. 4.Equipped with over-voltage, over-current and limit protections. 5.Measured temperature and system clock. 6.RS232 interface,can connect with computer. 7.Power-down preservation. It can save 100 tested results and displaying current ambient temperature and humidity. 3. transformer oil BDV test equipment Insulating oil dielectric strength tester Technical Data 1. Power supply: AC220V±10% , 50 HZ 1. (Different Power Supply can be supplied.) 2. Output voltage: 80KV, 100KV(100KV should be special designed) 3. Capacity: 1.5KVA 4. Speed of Voltage Increase:0.5~5kva/s(adjustable) 5. Standing Time: 15min (adjustable) 6. Boosting Frequency :1~6 time(s) (adjustable) 7. Wave form distortion : less than 3% 8. Time of dielectric strength:less than 10ms 9. Working Environment: Temperature: 0℃~ 45℃, humidity: max relative humidity 75%
