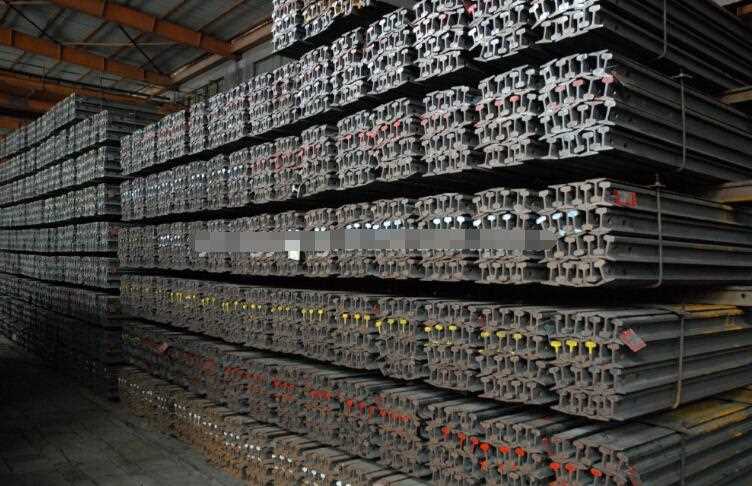

High Quality 15kg Light Steel Rail
Theory Weight (KGS/M):15.2kg/m;
Standard: GB11264-2012;
Materials:Q235, 55Q;
Length(m):6,8,9,10m.
Description
Standard: GB
Grade: Q235
Rail Heigth: 79.37mm
Bottom Width: 79.37mm
Web Thickness: 8.33mm
Head Width: 42.86mm
Length: 6m,8m,10m,
Place of Origin: Hebei, China (Mainland)
Brand Name: Yong Yang
Model Number: 15kg/m
Type: Light Rail
Application: industrial project
Weight: 15.2kg/m
Secondary Or Not: Non-secondary
Bolt Hole Diameter: 20mm
Packaging & Delivery
| Packaging Details |
Packed in bundle with iron wire |
|---|
| Delivery Time |
Shipped in 30 days after payment |
|---|
| THE LIST OF YYGT |
| Name of Commodity |
Specificaton |
Materials (Steel Grade) |
Standard of Products |
Theory Weight (kgs/M) |
Length of Dimension (M) |
Packed In Bundle With Iron Wire (pcs/bundle) |
| Light Rail |
4kgs/m |
Q235 |
Q/YG001-2014 |
4kgs/m |
6,8 |
75 |
| 8kgs/m |
Q235 |
Q/YG001-2014 |
8.42kgs/m |
55 |
| 12kgs/m |
Q235 |
GB11264-2012 |
12.2kgs/m |
36 |
| 15kgs/m |
Q235/55Q |
GB11264-2012 |
15.2kgs/m |
6,8,9,10 |
28 |
| 18kgs/m |
Q235/55Q |
Q/YG001-2014 |
18.06kgs/m |
21 |
| 22kgs/m |
Q235/55Q |
GB11264-2012 |
22.3kgs/m |
21 |
| 24kgs/m |
Q235/55Q |
Q/YG001-2014 |
24.46kgs/m |
21 |
| 30kgs/m |
Q235/55Q |
GB11264-2014 |
30.1kgs/m |
15 |
| Heavy Rail |
38kgs/m |
U71Mn |
GB2585-2007 |
38.733kgs/M |
12,12.5 |
10 |
| 43kg/m |
U71Mn |
GB2585-2007 |
44.653kgs/M |
10 |
| 50kgs/m |
U71Mn |
GB2585-2007 |
51.514kgs/M |
10 |
| |
45/50Mn |
Q/YYG002-2008 |
31/34/36/39/41kgs/M |
12,12.5 |
10 |
| Crane Rail |
QU70 |
U71Mn |
YB/T5055-93 |
52.8kgs/m |
12 |
10 |
| QU80 |
YB/T5055-93 |
63.69kgs/m |
10 |
| QU100 |
YB/T5055-93 |
88.96kgs/m |
5 |
| QU120 |
YB/T5055-93 |
118.1kgs/m |
5 |
| I-beam of Hot-Rolled Section Steel for Mine |
9# |
Q235 |
YB/T5047-2000 |
17.69kgs/m |
8,9,10 |
28 |
| 11# |
20MnK/ Q235 |
YB/T5047-2000 |
26.05kgs/m |
18 |
| 12# |
YB/T5047-2000 |
31.18kgs/m |
15 |
| Hot-Rolled U-Beam Steel for Mine Timbering |
25U |
20MnK/ Q275 |
GB4697-2008 |
24.95kgs/m |
8,9,10,12 |
15 |
| 29U |
GB4697-2008 |
29kgs/m |
15 |
| 36U |
GB4697-2008 |
35.87kgs/m |
15 |
| |
|
|
|
|
|
|
| |
|
|
|
|
|
|
| Name of Commodity |
Specification |
Materials |
Standard of Products |
Theory Weight (kg/set) |
Length of Dimension (MM) |
Packed in Bundle with Iron Wire (SETS) |
| (Steel Grade) |
| Fish Plate |
8kg/m |
Q235 |
GB11265-89 |
0.80-1.00 |
≈270-385 |
50 |
| 12kg/m |
1.00-1.50 |
≈409 |
50 |
| 15/18kg/m |
1.90-2.80 |
≈372-409 |
25 |
| 22kg/m |
3.30-7.50 |
≈426-510 |
20 |
| 24kg/m |
3.30-9.60 |
≈426-510 |
10 |
| 30kg/m |
6.00-11.00 |
≈561 |
5 |
| 38/43kg/m |
GB185-63 |
19.20-29.6 |
≈790 |
1 |
| 50kg/m |
21.2-35.2 |
≈790 |
1 |
