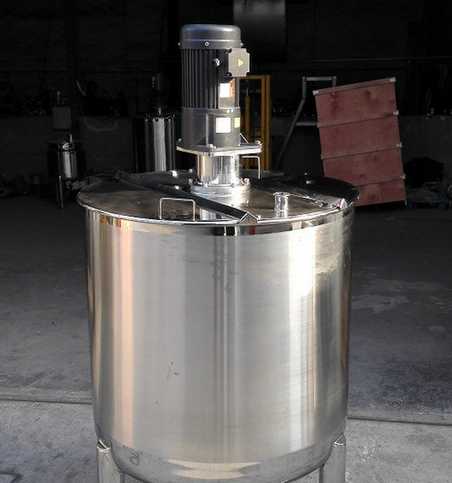

High Quality Ice Cream Machine

Designed according to GMP standard, widely used for mixing liquid mediumin the food-processing, cosmetics and pharmaceutical industries

Product Details Company Profile

Description

ice cream machine/ice cream machinery, making ice cream stirring tank
Brand: L&B
Material : stainless steel 304(L) 316(L)
Finish: Mirror or Matt Polish; Ra<0.8um
Certification: CE ISO9001:2000

Product Name:	ice cream machine/ice cream machinery, making ice cream stirring tank
Description:	Designed according to GMP standard, widely used for mixing liquid mediumin the food-processing, cosmetics and pharmaceutical industries
Heating method	By electricity (oils or water), by steam, by gas or no heating
Material:	SS304/SS316L
	jacket: dimple jacket/ miller board, hollow jacket or coil pipe jacket etc.
	insulation layer: PU Foam
	as to the thickness, we can make it according to your requirement.
OptionalConfiguration	1.manhole
	2.CIP spraying ball
	3.adjusting feet
	4.sample valve
	5.temperature gauge
	6.pressure gauge
	7.level gauge
Capacity:	50L-10000L
Agitator:	With agitator or not
Agitator type	Frame, paddle, scraper, homogenizer, turbo type etc.
Agitator Speed	20-36rpm, 50-300rpm, 760-1450rpm, 2800-3000rpm
Mechanical seal:	SIC/SiC/EPDM(Standard)
Agitator power:	0.55kw, 1.1kw, 1.5kw, 2.2kw, 3kw, …7.5KW
Sealing option:	Sanitary single mechanical seal/Double mechanical seal with cooling system
Voltage:	110-480V, 50/60Hz
Motor:	ABB, LOCAL,50hz/ 60hz
Surface treatment:	Inner polished and outside polished
Available connection:	Clamp, Thread Butt weld, Flange
Available standard:	DIN, SMS, 3A, RJT, ISO/IDF
Operated:	Electric
Application scope:	Dairy, food, beverage, pharmacy, cosmetic, etc
Packaging Details:	Plywood case Or as per the request of customers
Delivery details:	Usually within 35 days after receiving T/T down payment
