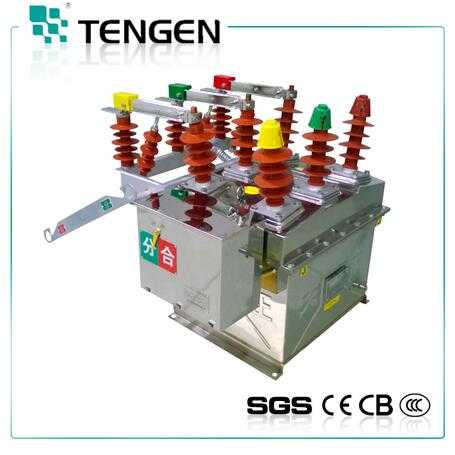

High quality safety and efficient ZW8-12G outdoor vacuum circuit breaker

ZW8 12KV, three-phase AC 50HZ, which is mainly used for making and breaking load current, over-current, short-circuit current rural network, city network and miniature power system.

Product Details Company Profile

Description

Place of Origin: Zhejiang, China (Mainland)
Brand Name: TENGEN
Model Number: ZW8-12G
Type: High Voltage, outdoor
Poles Number: 3
Rated voltage: 12KV
Rated current: 630A
Frequency: AC50Hz
Power frequency withstand voltage: 34,42,48KV
Altitude: ≤2000
Electrical life: 10000times
Standard: GB1984-2003,IEC62271-100,GB/T11022-1999,DL/T402-2007,GB/T311.2-2002
Model type: vacuum
Function: overload,short circuit protection

Application

ZW8 12KV, three-phase AC 50HZ, which is mainly used for making and breaking load current, over-current, short-circuit current rural network, city network and miniature power system.

ZW8-12G is formed with ZW8-12 circuit breaker and isolation knife, called combined circuit breaker, may use for breaking switch.

This Circuit breaker can be installed with surge arresters, surge arresters can be installed in the entry according to user requirements, inter-office outlet side;

This Circuit breaker can be equipped with inrush current controller, it has to eliminate inrush current and over-flow-off functions.

Main technical parameter

NO.	Specification		Unit	Data
1	Rated voltage		KV	12
2	Rated current		A	630
3	Rated frequency		HZ	50
4	Work frequency withstand voltage		KV	42
5	Lightning impact voltage ( peak value)		KV	75
6	The rated breaking current of short circuit		KA	12.5	16	20
7	The specified barrier of short circuit joins current ( peak value)		KA	31.5	40	50
8	Specified is short withstand current		KA	12.5	16	20
9	The specified withstand current of peak value		KA	31.5	40	50
10	Specified operating order			0.3S——180S
11	Specified short-circuit current breaks open frequency			30
12	Mechanical life			10000
13	Move , Chu first permissible wear amount to thickness		mm	3
14	Specified operating voltage matches the spring of CT model to hold motivation Gou	Join floodgate coil	V	110,220
		Divide into floodgate coil
15	Error flows to take off deduct coil specified working current		A	5
16	Storage motor	UINT	V	110,220
		current	W	≤ 200
17	Weight		Kg	150
