Description
Place of Origin: Zhejiang, China (Mainland)
Brand Name: FZDLi
Model Number: 36KV / 100A
Usage: High Voltage
Breaking Capacity: High
Safety Standards: IEC
Type: 36KV 100A Fuse outcut
Color: Grey
Material: Ceramic Body
Size: 57*38*14.5cm
Rated current: 100A
Certificate: CQC

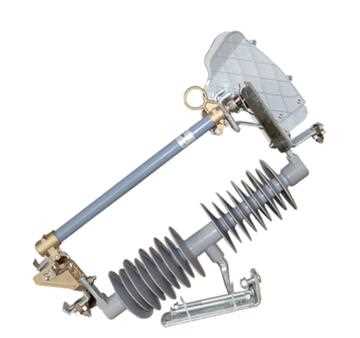

Product name: 36kv 100A drop out fuse cutout
SHIPPING: DHL
Packing: Carton
Rated voltage: 36kv fuse cutout
fuse cutout and load switching fuse are of outdoor used high voltage protectivedevice.To be connected with incoming feeder of distribution transformer or distribution lines it mainly protect transformer or lines from short circuit and overload,and on/off loading current.Drop-out fuse cutout is composed of insulator supports and fuse tube,static contacts is fixed on two sides of insulator support and moving contact is installed on two ends of fuse tube.Fuse tube is composed of inside arc-switching fuse cutout provides enforedelastic auxiliary contacts and arc-exinguishing exclosure for switching on/off loading current.
Technical parameter table
|
Type
|
Unit
|
FSC-46
|
FSC-46
|
|
Rated voltage
|
KV
|
33/36
|
33/36
|
|
Rated current
|
A
|
100
|
200
|
|
Breaking current
|
A
|
6000
|
8000
|
|
Impulse voltage
|
BIL
|
170
|
170
|
|
Power-frequency withstand voltage
|
KV
|
70
|
70
|
|
Leakage distance
|
mm
|
680
|
680
|
|
Weight
|
KG
|
5.3
|
5.3
|
|
Dimensions
|
cm
|
60*35.5*12
|
60*35.5*12
|
