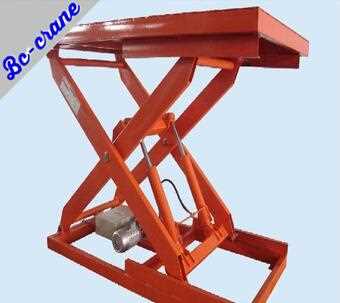

Hot sale High Quality 660-1500kg Customized hydraulic lift machine

Product name: hydraulic platform lift; Overall Dimensions:: 1890*760*2200mm; Walk Way: Manual; Max height: 18m;

Description

Place of Origin: Jiangsu, China (Mainland)
Brand Name: BAICHUAN
Model Number: BC
Lift Mechanism: Scissor Lift, Scissor Lift
Lift Drive / Actuation: Hydraulic
Power: 1.1kw
Rated Loading Capacity: 1t
Min. Lifting Height: 0.6m
Max. Lifting Height: 18m
Table Size: Customized
Overall Dimensions: Customized
Weight: 660~1500kg
Certification: CE ISO SGS, CE ISO
Warranty: 1 year
After-sales Service Provided: Engineers available to service machinery overseas
Scissor Material: high-strength steel
Colour: customized
Load capacity: 1000kg
Condition: New
Product name: hydraulic platform lift
Overall Dimensions:: 1890*760*2200mm
Walk Way: Manual
Max height: 18m

Introduction:

1 High working capacity, easily pushed around,most spacious platforms for several people to work on

2 High strength steel structures,smoothly lift up and drop down, easily operated,few faults.

3 Moving method:4 wheel and 2wheel types are optional, it can be pneumatic rubber tyres,solid rubber tyres or polyurethane tyres.
4 Power sources: local power available at the working sites(24V,220V,380V),diesel engines and generators
5 Working heights: 4m,6m,8m,10m,12m,14m,16m,18m,

Height (m)	Capacity (kgs)	Size table(mm)	Overall dimension(mm)	Power Kw	Weight (kgs)
4	300	1700*1080	182014001180	2.2	660
6	300	1700*1080	182014001280	2.2	750
8	300	1800*1060	190013801460	2.2	850
10	300	1920*1200	204015801660	2.2	1300
12	300	2370*1300	251016301980	2.2	1420
14	300	2650*1300	280016601980	2.2	1800
16	300	2650*1340	280016002130	3	2800
8	1000	1940*1300	192016301980	2.2	1050
10	1000	1920*1300	206016301980	2.2	1500
