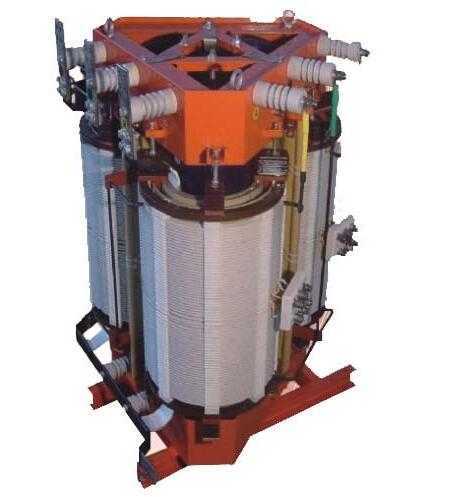

ISO9001:2008 2500kva wound core dry type transformer

Three-dimensional wound core dry type transformer has all the advantages of the normal H-class dry type transformer. Phase: Three Coil Structure: Toroidal Coil Number: Autotransformer

Product Details Company Profile

Description

Place of Origin: Henan, China (Mainland)
Brand Name: Diteli

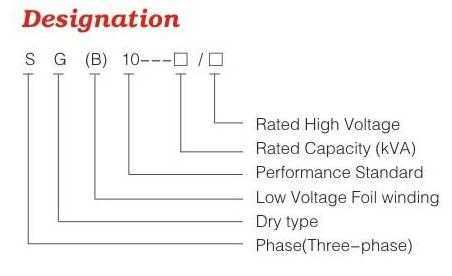

Model Number: SGB-RL
Usage: power grid system
Phase: Three
Coil Structure: Toroidal
Coil Number: Autotransformer
Certification: ISO9001:2008
Standard: IEC Standards
Type: Wound Core Dry-type

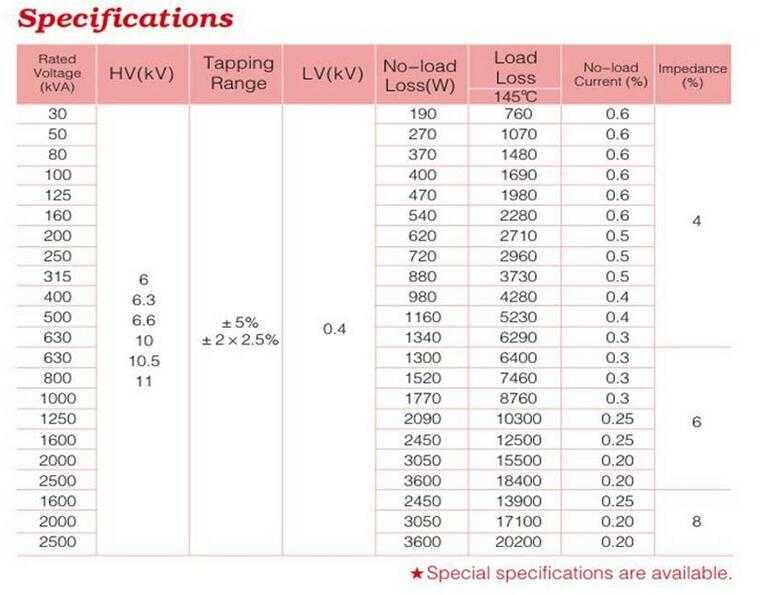

Rated capacity: 2500kva
High Voltage: 10kV
Low Voltage: 0.4kV
Material: Copper/Aluminium
Frequency: 50/60Hz
Connect Symbol: Dyn11 or Yyn0
Cooling Method: Oil Natural

Three-dimensional wound core dry type transformer has all the advantages of the normal H-class dry type transformer, also its magnetic circuits are completely symmetrical, the no-load current balanced, lower no-load cost and current, and less volume and weight.

Features:

1, Good Structure

The structure is built by three independent iron cores, completely symmetry magnetic circuits, equal magnetic impedance and no-load current.

2, Low Noise

Due to the special structure, the noise can be reduced a lot at work.

3, Energy Saving

100% utilization ratio, recycling and environmental protection.

4, Safety

Safe insulating materials, non-toxic, fireproof.

5, Reliability

Good quality, Long working life.

ISO9001:2008 2500kva wound core dry type transformer
