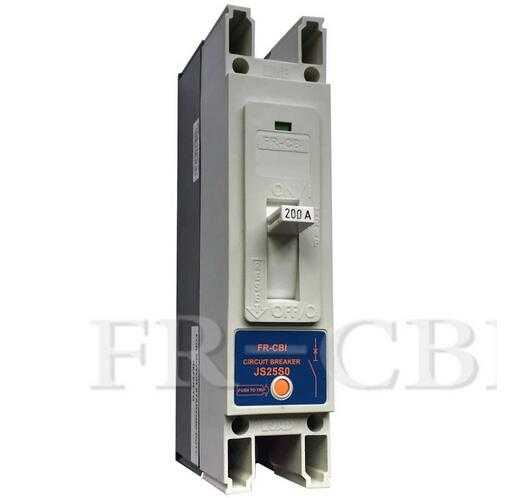

JS250 Series MCCB Open Frame Moulded Case Circuit Breaker

JS series Moulded Case Circuit Breakers for the protection of installations and equipment against overload and short circuit conditions. Suitable for industrial and power distribution applications.

Product Details Company Profile

Description

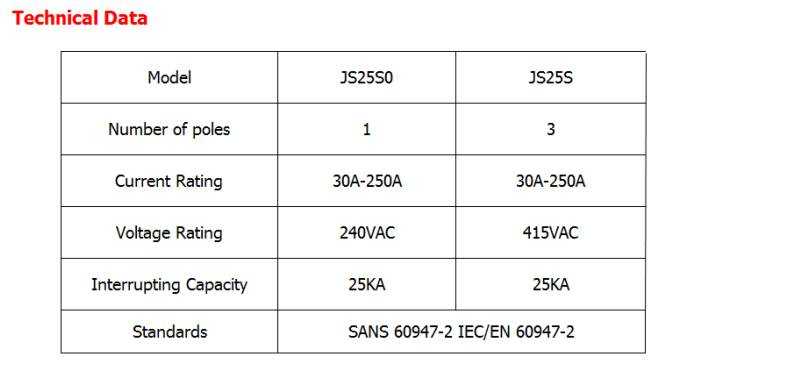

Model NO.: JS250
Operation: Electric Type
Arc-extinguishing Medium: Air
Structure: MCCB
Type: Circuit Breaker
Certification: CNAS,Ma
Cover: Moulded Case
Standard: Sans60947-2 IEC/En60947-2
Specification: 30-250A

Breaking Capacity: Low Voltage Circuit Breakers
Speed: High-Speed Circuit Breaker
Installation: Open Frame
Poles Number: 1
Function: Conventional Circuit Breaker, Circuit-Breaker Failure Protection, Overcurrent Protection, OVP(Overvoltage Protection)
Characteristic: Hydraulic Magnetic
Interrupting Capacity: 25ka
Trademark: FR-CBI
Origin: China
