Parameter

brand : clirik

warranty : 1 year

after sales : abroad engineers

color : as reqyest

motor type : AC

condition : new

certification : CE&ISO

Description

Shell Size:15-35mm

Grinding Weight:1.2 - 11 T

Application:The Kaolin raymond mill is widely used in small and medium mining, chemicals, building materials, metallurgy, refractories, pharmaceuticals, cement and other industries.

Raw Material:such as gypsum, talc, calcite, limeOre, marble, barite, dolomite, granite, kaolin, bauxite, fly ash , oxidation iron oxide red, iron ore, etc.

Output:30 - 425 mesh

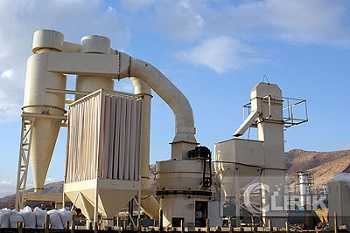

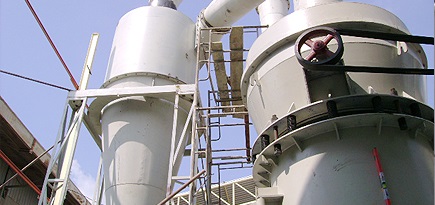

introduction of Kaolin raymond mill



 known as Raymond Grinder or Pendulum Grinder, is designed by CLIRIK Machinery with Germany technology. The Kaolin raymond mill is more efficient than ball mill in some area, with features of closed circuit for high fine powder devices.



Kaolin raymond mill Features



1.Low production cost, high-performance

Overall for the vertical structure, small footprint, systematic, from raw material delivered to the milling and roughing to final packaging, of an independent production system

2.Good stability, high reliability

Raymond Host transmission device adopts enclosed gear boxes and pulleys, transmission smooth, reliable operation.

3.Perfect particle size

Electrical system adopts centralized control, milling workshop basic enabling unmanned operation.





Structure of Kaolin raymond mill



Kaolin raymond mill(Rammond roller mill) is mainly composed of main unit, analyzer, fan, dischargeing cyclone separator, powder cyclone separator and air duct. Among them, the main unit consists of frame, blow shell, shovel, grinding roller and grinding ring.



Working principle of Kaolin raymond mill



The rollers tightly rolled on the ring under the effect of centrifugal force. Shovel sends material between the roller and ring and the material is grinded into powder under the high pressure.Then the fan blows the power up into the analyzer. At this time, the power material met the fineness requirement get through the analyzer and get into the power cyclone separator while the others will be sent back for re-grinding.The whole system is airtight circulation.





Technical Parameter of  Kaolin raymond mill



Type	Roller			Max. feeding size(mm)	Fineness of product(mm)	Output (t/h)	Power of machine(KW)	Size(mm)
	No.	Dimension(mm)	Height(mm)
YGM7815	3	260	150	15	0.613-0.033	1-3	18.5	4300*3500*5100
YGM8314	3	270	140	20	0.613-0.033	1.2-4.6	22	5300*4100*5200
YGM9517	4	310	170	25	0.613-0.033	2.1-5.6	37	7100*5900*7900
YGM4121	5	410	210	30	0.613-0.033	2.8-10.5	75	9200*7250*9700
MTM1600	6	440	270	35	0.613-0.033	5-20	132	12550*5700*8350

Notice: Any change of  Kaolin raymond mill technical data shall not be advised additionally.
