Product name

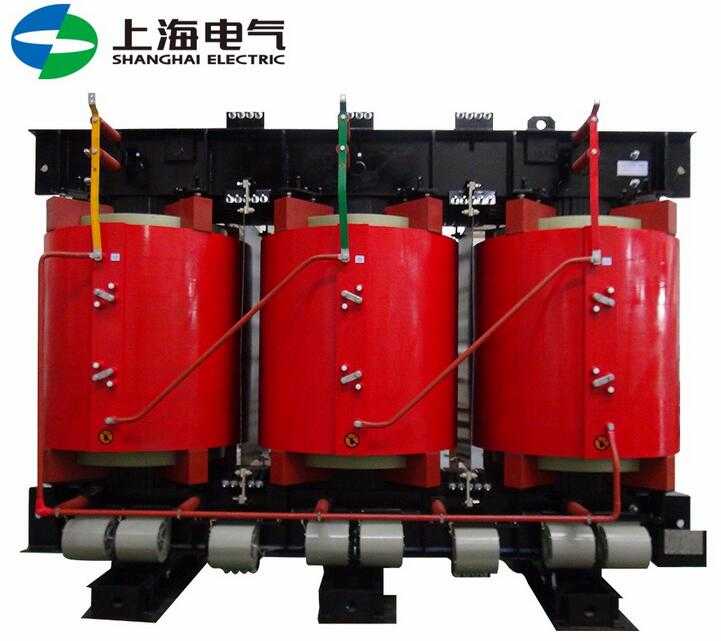

Dry type transformer

technical parameter

(Type)

SCB11-20000/35

(Core material)

(Cold-rolled silicon steel)

(Core structure)

(Laminated core)

(kV)(HV winding)

35

(kV)((LV winding))

10.5

(connection)

(Hz)( rated frequency)

50

(number of phases)

3

(voltage regulating mode)

 (Load)

(Pressure regulating position)

 (HV side)

(range of regulation)

±2x2.5%

(Neutral grounding)

 (Non-direct grounding)

(cooling)

AF

Product Main Features

1.Low loss: excellent energy-saving effect, economic operation, maintenance free.
2.Low noise: product noise level is lower than the current professional standards 10-15 db.
3.Low put: pouring with vacuum pressure casting, vacuum film degassing, ensure the epoxy resin proportioning accuracy and pouring quality. Partial discharge, control below 5PC.
4 High mechanical strength: the inner and outer layers of high and low voltage coils are wrapped with glass fiber and glass fiber, and the resin is infiltrated and solidified into a whole.
