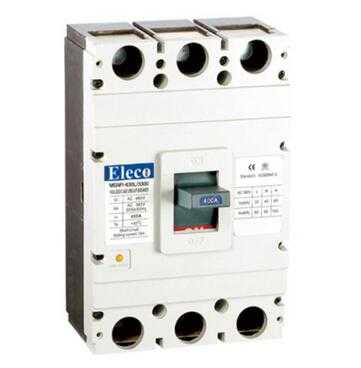

MLM1 Series Hot Sale Conventional Moulded Case Circuit Breaker

ELM1 series moulded case circuit breaker is one of products developed and manufactured by adopting international advanced technology. It is supplied with rated insulating voltage 690V and used for circuit of A.C. 50/60Hz.

Product Details Company Profile

Description

Model NO.:MLM1 Series

Breaking Capacity:Low Voltage Circuit Breakers

Operation:Manual Type

Speed:High-Speed Circuit Breaker

Arc-extinguishing Medium:Air

Installation:Fixed

Structure:MCCB

Poles Number:3p,4p

Type:Circuit Breaker

Function:Conventional Circuit Breaker

Certification:ISO9001-2000, CE, CB, Semko

Number of Poles:3/4

Rated Insulation Voltage Ui:500V/400V/690V

Rated Current in:12.5,16,20,25,32,40,50,63,400,630,800,1250,1600

Rated Operating Voltage Ue:230V/400V

Dielectric Property:2500V

Trademark:ELECO

Origin:Zhejiang, China

ELM1 series moulded case circuit breaker is one of products developed and manufactured by adopting international advanced technology. It is supplied with rated insulating voltage 690V and used for circuit of A.C. 50/60Hz, rated operating voltage AC 400V(or below), rated operating current up to 1250A for infrequent changing over and starting of the motors. The products conforms to IEC60947-2 standard.

Model		ELM1-63						ELM1-125						ELM1-225						ELM1-250
Number of poles		3			4			2		3		4		2		3		4		2		3		4
Frame size current		63						125						225						250
Rated current(A)		10,16,20,25,32,40,50,63,						16,20,25,32,40,50,63,80,100						100,125,160,180,200,225						200,225,250
Rated insulation voltage(V)		500						800						800						800
Rated operating voltage(V)		380/400/415						380/400/415/690						380/400/415/690						380/400/415/690
Arcing distance (mm)		≤50						≤50						≤50						≤50
Breaking capacity code		S	H	H		H	S		H	R	H		H	S	H		R	H	H		S	H	R		H
Frame size rated current(A)		63	63	63		100	100		100	100	255		255	255	255		255	255	250		250	250	250		250
Ultimate short-circuit breaking capacity Icu (ka,RMS)	AC380V/400V/415V	15	35	35		50	25		50	65	50		50	25	50		65	50	50		25	50	65		50
	AC690V	-	-	-		8	3		8	10	8		8	5	8		10	8	8		5	8	10		8
Service short-circuit breaking capacity Ics (ka,RMS)	AC380V/400V/415V	7.5	17.5	17.5		25	12.5		25	32.5	25		25	12.5	25		32.5	25	25		125	25	32.5		25
	AC690V	-	-	-		4	1.5		4	5	4		4	2.5	4		5	4	4		2.5	4
