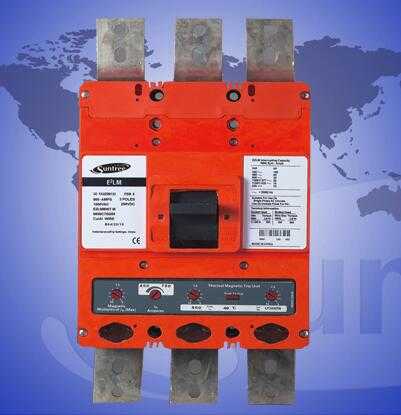

Manual Type ELM with busbar Adjustable Moulded Case Circuit Breaker

SM5 series circuit breaker can be used in DC situation as well. 630A frame 3p circuit breaker concatenation used in DC600V breaking capacity can reach 40kA.

Product Details Company Profile

Description

Breaking Capacity: Low Voltage Circuit Breakers
Speed: Normal Type Circuit Breaker
Installation: Fixed
Certification: ISO9001-2000, CE
Brand: Suntree
Quality: Best
Type: Sun1
Specification: 160~1250
HS Code: 853620000

Operation: Manual Type
Arc-extinguishing Medium: Air
Structure: Moulded Case Circuit Breaker
Payment: T/T, L/C, Paypal
MOQ: 10set
Hs: 853620000
Trademark: suntree
Origin: Zhejiang China

SM5 series circuit breaker including 7 basic frames, frame current
from 100 to 1600A. each frame has up to 415V 100kA short circuit
breaker capacity multiple choice, more flexibility in design, and save
space as well.
SM5 series circuit breaker can be used in DC situation as well. 630A
frame 3p circuit breaker concatenation used in DC600V breaking
capacity can reach 40kA.

Frame current(A)		225	400	630	800
Model		E2FM	E2KM	E2LM	E2LM
Breaking capacity(kA ms) AC 50/60Hz	lcu	85	85	85	65
220-240VAC
	lcs	85	85	85	33
	lcu	40	45	45	50
380-415VAC
IEC	lcs	40	45	45	25
60974-2	lcu	12	20	20	20
660-690VAC
	lcs	6	10	10	10
	lcu	10	10	20	20
250VDC
	lcs	5	5	10	10
240VAC	65	65	65	65
NEMA 480VAC	25	35	35	35
600VAC	18	25	25	25
Number of poles	2, 3, 4	2, 3, 4	2, 3, 4	3
Rated current	16-125A	125-400A	315-630A	700-80A
Interchangeable type
Trip unit Fixed type
Fixed thermal type
Thermal-magnetic Adjustable termal type
Magnetic type	Fixed	Adjustable	Adjustable	Adjustable
LS	-	Standard	Standard	Standard
LSI	-	Selectable	Selectable	Selectable
Rms solid LSG	-	Selectable	Selectable	Selectable
LSIG	-	Selectable	Selectable	Selectable
