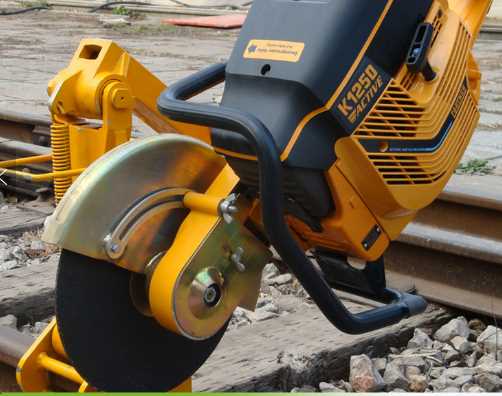

New railway maintenance equipment of abrasive rail cutting machine
New railway maintenance equipment of abrasive rail cutting machine, Featured by small size, light in weight, fast in cutting and high precision of cut cross section. Main machine and the clamp unit could be separated, easy carry and safe for operation. It is an essential tool for railway maintenance and rescue operations.
Description
Quick Details
- Type:
-
Sleepers, rail cutter
- Material:
-
Steel
- Dimensions (L x W x H) (mm):
-
780*480*500mm
- Place of Origin:
-
Yunnan, China (Mainland)
- Brand Name:
-
OTON
- Model Number:
-
NQG-5.9
- Name:
-
New railway maintenance equipment of abrasive rail cutting machine
- Color:
-
Yellow
- Application:
-
railway maintenance
- Control system:
-
internal combustion
- Cutting time:
-
less than 1 minute and 50 seconds to cut 60kg/m rail
- Wheel speed:
-
85m/s 100m/s
- Rotate speed:
-
5100r/min
- Usage:
-
Raillway Cutting Machine
Packaging & Delivery
- Packaging Details
- New railway maintenance equipment of abrasive rail cutting machine: normal export wooden packing or as customer's requirement.
- Delivery Time
- 15 working days
Product Description
Product Application for New railway maintenance equipment of abrasive rail cutting machine
New railway maintenance equipment of abrasive rail cutting machine, Featured by small size, light in weight, fast in cutting and high precision of cut cross section. Main machine and the clamp unit could be separated, easy carry and safe for operation. It is an essential tool for railway maintenance and rescue operations.
SPECIFICATIONS FOR New railway maintenance equipment of abrasive rail cutting machine
|
|
Name
|
New railway maintenance equipment of abrasive rail cutting machine
|
|
Power
|
5.8kW
|
|
Grinding wheel
|
Φ305×Φ25mm,Φ355×Φ25mm
|
|
Rotate speed
|
5100r/min
|
|
Wheel speed
|
85m/s 100m/s
|
|
Accuracy of cut face
|
a. Deviation of rail section perpendicularity is less than 0.25mm
b. Deviation of rail plane is less than 0.22mm
|
|
Cutting time
|
Less than 1 minute and 50 seconds to cut 60kg/m rail.
|
|
Weight
|
29kg(main machine 18kg, clamp unit 11kg)
|
|
Dimensions(L×W×H)
|
780×480×500mm
|
More details about New railway maintenance equipment of abrasive rail cutting machine
Main Features of new railway maintenance equipment of abrasive rail cutting machine
1) Small size, light weight, high power, fast cutting speed, high cutting accuracy for new railway maintenance equipment of abrasive rail cutting machine,
2) Engine power output process, low fuel consumption, in line with the requirements of environmental protection and energy saving.
3) Unique design, flexible and reliable Rotary frame, in grinding wheel consumption to a certain extent, flip the frame 180 degrees, use the reverse function, quickly cut off the rail.
4) Double-layer composite air filter can effectively block the dust into the engine and prolonging its service life
5) Thickening increases wheel pressure plate, which can effectively reduce the resonance vibration of thin grinding wheel in rail, rail ensure accuracy and safety of the operator
6)Intelligent, programmable electronic ignition system, easy to start, which can raise speed instantly and achieve smooth idling.Construction jobs suitable for different climate conditions
7) Host with rail clamp frame can break down, the use of safe, easy to carry for rail cutter
Company Information
New railway maintenance equipment of abrasive rail cutting machine
Kunming OTONDA Railway Machinery Co., Ltd. is the corporate-owned limited liability company of China Railway Large Maintenance Machinery Co.,Ltd. The main business of OTONDA covers development, manufacturing and supplying variety of railway maintenance, machine and spare parts.Till now, OTONDA has become the largest supplier of railway business. And has a close working relationship with PLASSER& THEURER in Austria, and ROBEL in Germany.
Packaging & Shipping
New railway maintenance equipment of abrasive rail cutting machine
Normal export carton packing for new railway maintenance equipment of abrasive rail cutting machine,
As customers requirement.
If you are interested in our New railway maintenance equipment of abrasive rail cutting machine, pls don't hesitate to contact me for more details, aslo you can find us by: abrasive rail cutting machine, rail cutting machine, rail cutter.
FAQ
Q: What is the delivery time?
A: Our delivery time is 15days after payment.
Q: What are the main application fields of your products?
A: Widely used in railroad maintenance.
Q: Is it possible for mark the own brand on the machine?
A:Yes, we can provide OEM and ODM services. And we can design color box too, if you need.
Q: What kind of service do you provide?
A: Before sale:Provide product information, market research forecasting, product customization, product processing, consultation and other services for your convenience.
Advantages
- We are one of the earliest domestic small rail maintenance machine manufacturer. We are proud of our wide product range, strict quality control and stable customer relationships.
- Own patent for renovator.
- Tested tools one by one before shipping.
- QC moniters during all production.
