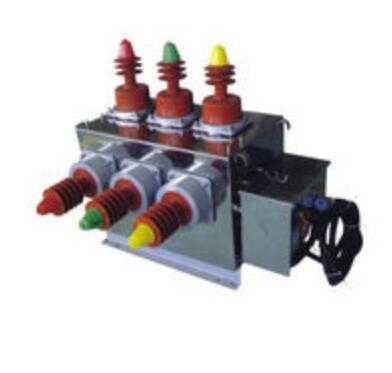

Outdoor High Voltage Automatic Recloser SF6 Circuit Breaker

ZCW10-12M outdoor high-voltage automatic recloser can be applied to the new substation and transformation, urban and rural network 10kv line of new construction and transformation, oil field, mine 10kv opening closing and automatic railway 10kv trunk and other new switchgear.

Product Details Company Profile

Description

Model NO.: ZCW10-12M
Operation: Automatic
Arc-extinguishing Medium: SF6
Structure: MCCB
Type: Circuit Breaker
Certification: ISO9001-2000
Transport Package: Carton
Origin: Shanghai, China(Mainland)

Breaking Capacity: High Voltage Circuit Breakers
Speed: High-Speed Circuit Breaker
Installation: Fixed
Poles Number: 4
Function: Conventional Circuit Breaker, Circuit-Breaker Failure Protection, Overcurrent Protection, OVP(Overvoltage Protection), RCCB
Trademark: None
Specification: steel
HS Code: 73269090

ZCW10-12M outdoor high-voltage automatic recloser can be applied to the new substation and transformation, urban and rural network 10kv line of new construction and transformation, oil field, mine 10kv opening closing and automatic railway 10kv trunk and other new switchgear. In the different line conditions, in accordance with the pre-set procedures automatically break and overlap operation, the product itself built-in PT power, with YCK220H controller and YCB-1 computer intelligent reclosing protector, composed of recloser and distribution network automatic switch. YCK-220H controller and YCB-1 microcomputer intelligent reclosing protector based on microprocessor technology to provide protection, data logging and communication functions.

The shell of product is made of corrosion-resistant stainless steel, the main circuit casing using a stable anti-ultraviolet radiation polymerization material, and is equipped with a large creep distance silicone rubber form which the conductive rod leads out, with a reliable creepage distance. The casing can also be equipped with current transformers to provide current measurement. The operating mechanism of the product uses a separate permanent magnet operation structure (the company's patented product) to operate three-phase vacuum tube, more to ensure three-phase synchronization, the operating mechanism based on the fourth generation of permanent magnet operating mechanism technology.

The YCB-1 microcomputer intelligent reclosing protector utilizes microprocessor technology to integrate directional over current protection, ground protection, small current ground protection, auto-overlap function, real-time measurement, event logging and RTU functions on a single processor. The operation panel is equipped with four lines of liquid crystal display with bottom light, using the keyboard to achieve local operation. In addition to the high degree of automation, strong anti-interference ability, with advantages of safe ,reliable and convenient, but also with remote GSM communication function, easy to achieve substation remote controller and urban distribution network automation requirements.

Rated insulation level:

1.Power frequency withstand voltage, 1 min: dry: 42/48KV and wet: 75/85KV

2.Rated short circuit breaking current: 12.5/16/20KA

3.Rated short circuit making current (peak): 31.5/40/50KA

4.Rated short time withstand current: 12.5/16/20KA

5.Rated peak withstand current: 31.5/40/50KA

6.Rated operation sequence: 0-0.3s-C0-180S-C0

7.Number of rated short circuit breaking current: 30times

Main technical parameters:

Rated voltage: 12KV

Rated current: 630A

Rated frequency: 50Hz
