PE Film Liner Inserting Cutting-Sewing Machine for Woven Bag

Application: PE liner insert, bag cutting & sewing on same machine Bag type: Woven bag Working Capacity: Max. 20pcs\min.

Product Details Company Profile

Description

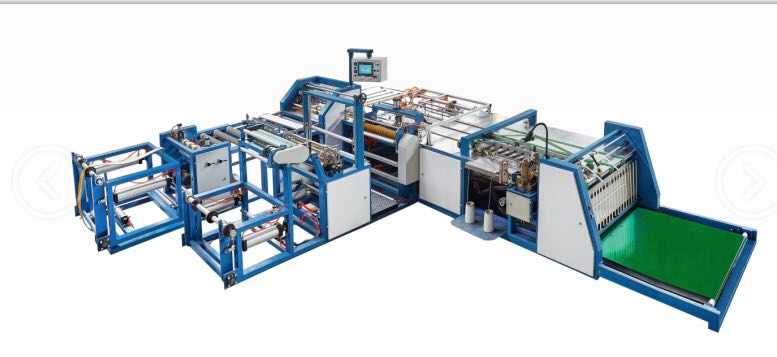

PE Film Liner Inserting Cutting-Sewing Machine for Woven Bag

PE Film Liner Inserting Cutting-Sewing Machine for Woven Bag (QTF-750)
Diameter of roll	Max. 1200 mm
Width of bag	Max. 750 mm
Cutting length	600-1200 mm
Cutting length accuracy	±1 mm
Bottom folding width	20-30 mm
Length of inner film bag	≥length of outer woven bag + 20mm
Thickness of inner film bag	≥0.01mm
Stitching range	7-12mm
Working Capacity	Max. 20pcs/min.
Stack and delivery	The counting according to requirement at each stack 100 or 50
Air compressor	0.9m³/min
Heating power	2 kw
Power	10 kw
Dimensions	9500x5500x1200mm
Lead time	30 working days
Packing	Pallet with film wrapping

Main Features:

-Electrical parts: Only international famous brands are used for stable performance, less maintenance and saving of spare parts.

-Unwinding part: Pneumatic devices, photoelectricity sensors and dancing rollers are used for stable and precise feeding of fabric from roll.

-Color Mark Tracking: Photoelectricity is used for more accurate tracking.

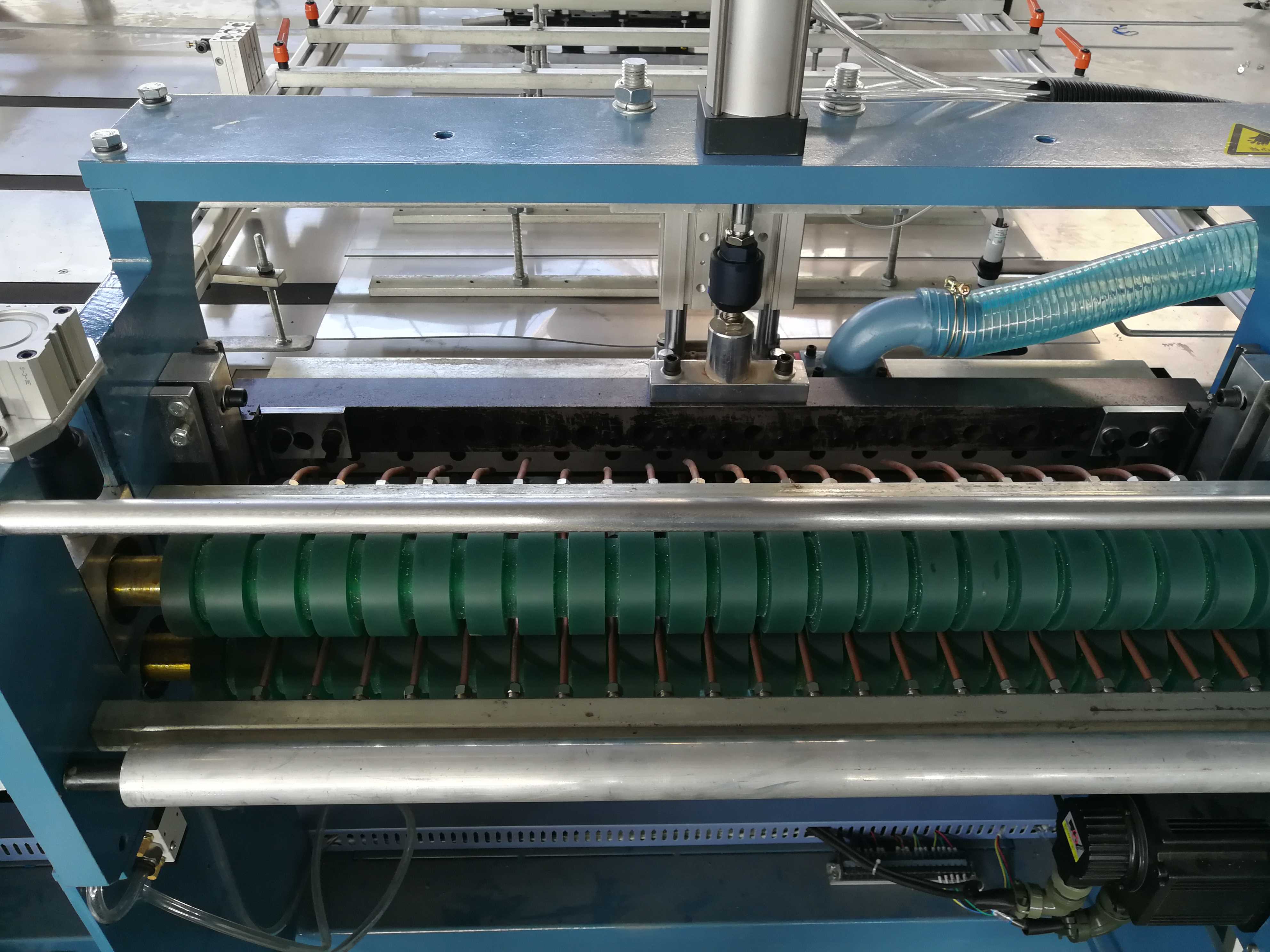

-Cutting part: Both hot and cold cutting are available and servo motor is used for precise cutting length control.

-90 Degrees transfer part: Gripper device is used for accurate feeding of bags to sewing machine after 90 degrees transfer, which reduce the reject rate of finished bags.

-Inner film bag insert: film feeding is controlled and driven by servo motor for better precision. Cutting, Bottom sealing and Inner bag insert could be done in one step.

- Sewing part: New Long sewing machine (made in Japan) is available as optional part for the best sewing quality and high working efficiency.

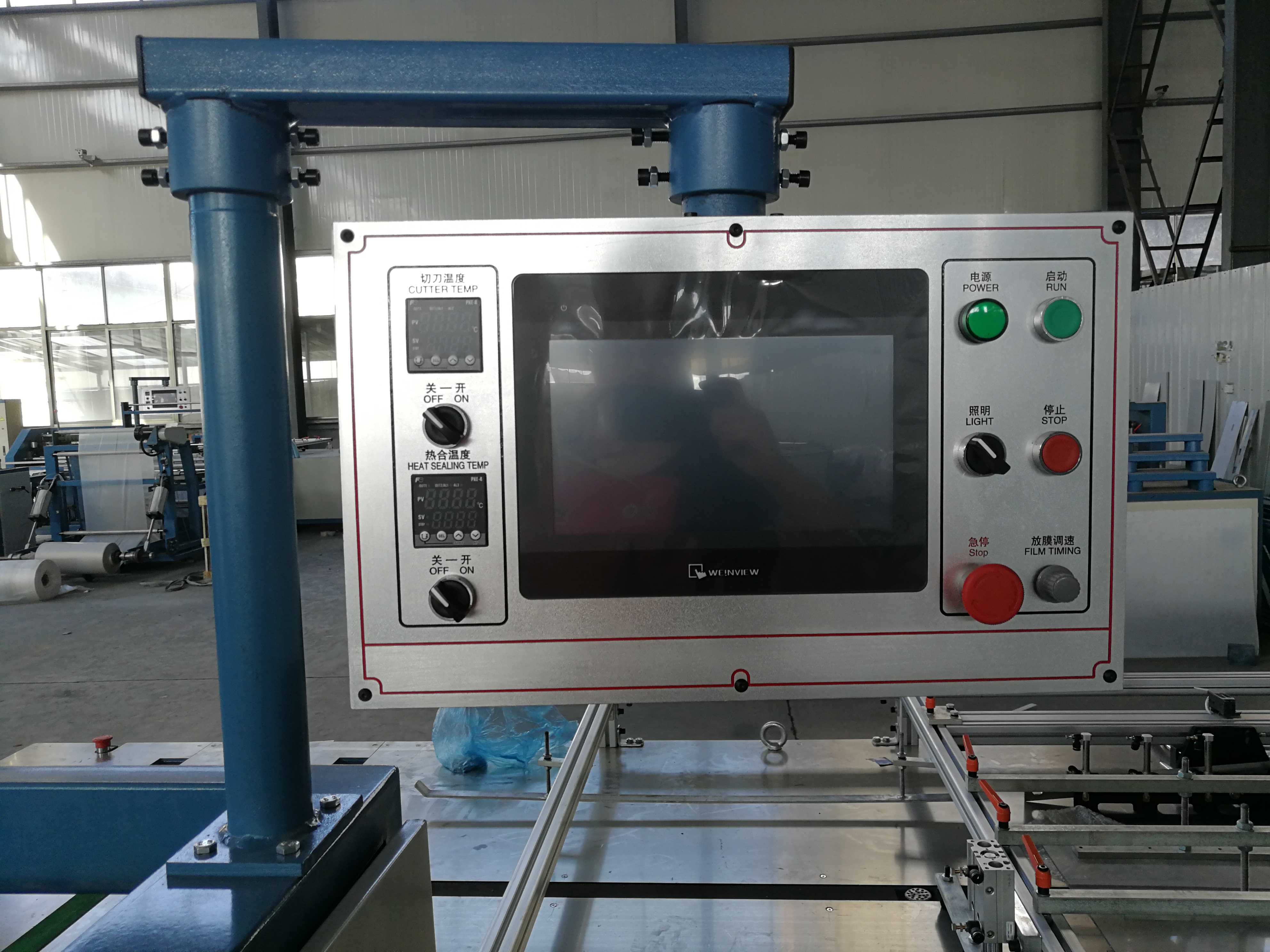

-Easy operation: One-button adjustment for all processes of unwinding, cutting, transfer and sewing among different sizes of bags.

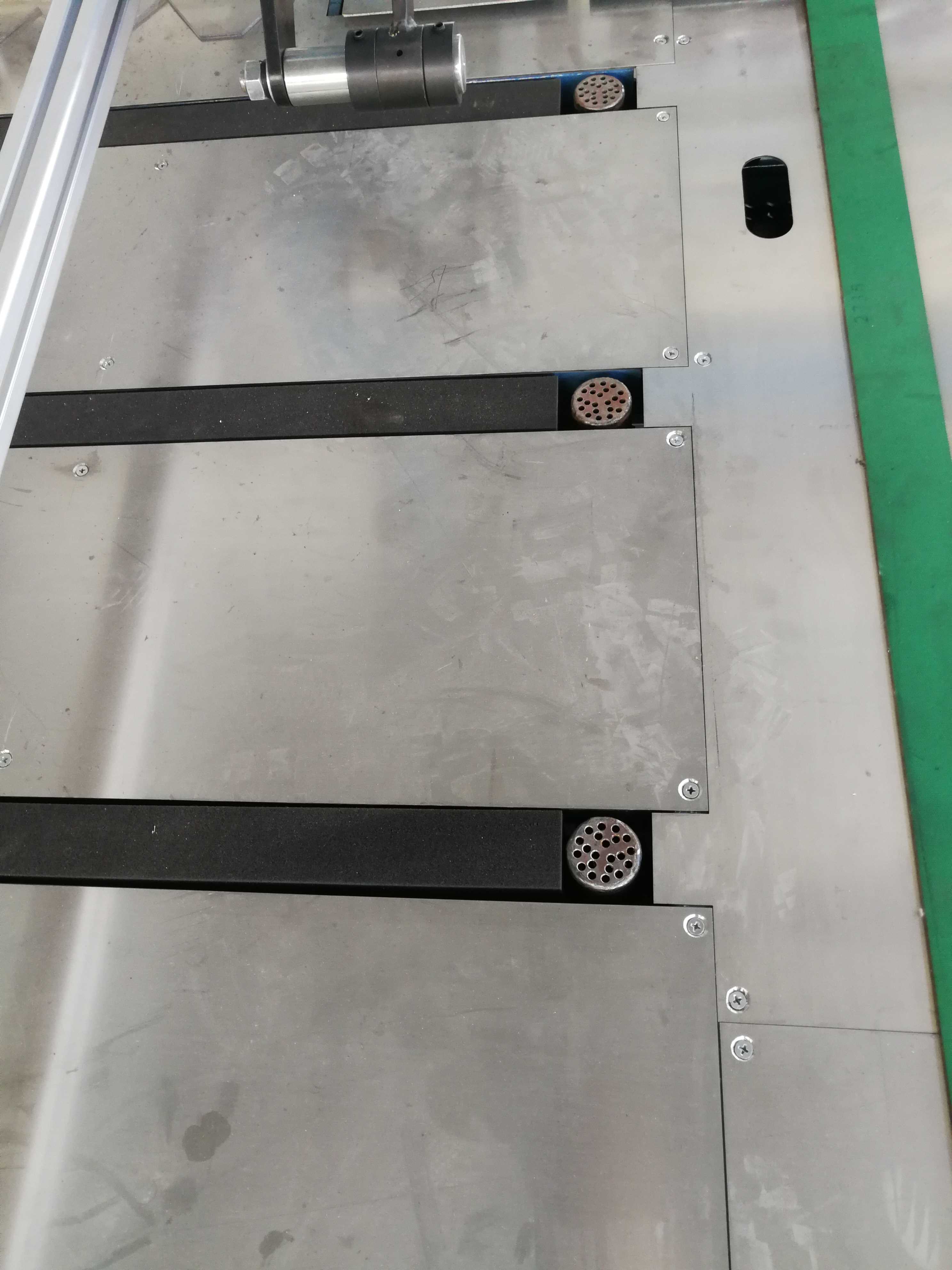

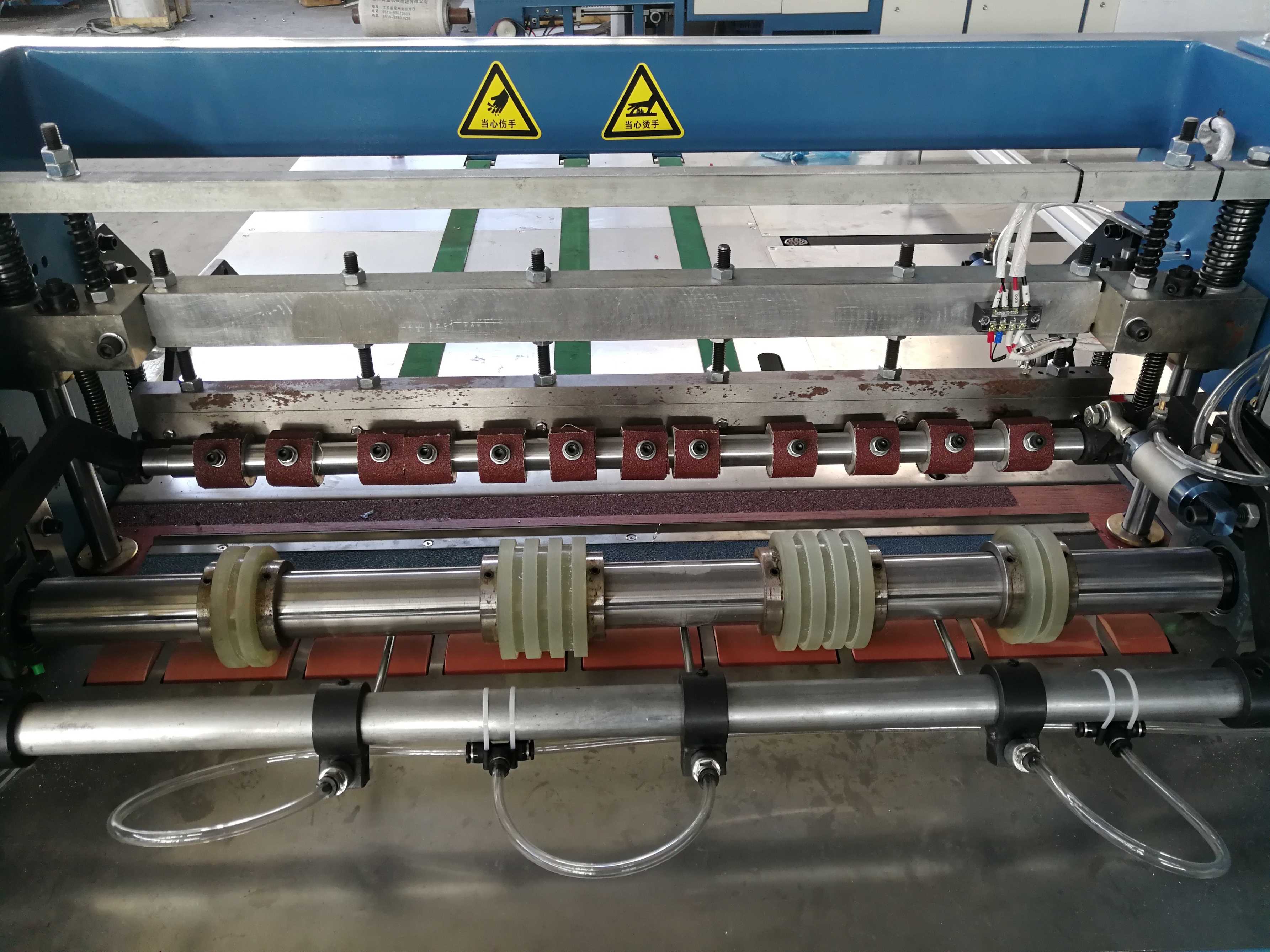

Detailed Images
