- Packaging Details:30m/roll woodenbox
- Delivery Time:in 20-30 days
| Application: |
Woven Wire Mesh, good processing,industrial filteration |
| Advantage: |
tensile strength and flexibility is high,Durability using |
| Features: |
it has better abrasion resistance, better corrosion resistance |
| Color: |
Silver |
| Width: |
0.9m-2m |
Weave Type
Stainless Steel Woven Mesh Parameters
Mesh – The number of openings per lineal inch.
Aperture- The distance between two adjacent wires
Diameter- The thickness of the wire before weaving
Open Area- The ratio of the area of the aperture to the area of the mesh expressed in percentage terms
Warp- All wires running lengthwise of the cloth as woven
Weft- All wires running across the cloth as woven
Product Description
Stainless steel mesh is the most popular woven screen in the industrial world,as well as printing materials.
Please see below a list that MAISHI can produce:
[ Materials ]: 1.AISI: AISI 304,AISI 304L,AISI 316,AISI 316L
2.T series: T 304,T 316
3. SS series: SS 410, SS 430, SS 302
4. SUS : SUS 310,SUS 310L
[ Width ] : 0.914m, 1m, 1.22m, 1.3m, 1.4m, 1.5m, 1.6m, 2m, 3m, 4m, 6m.
[ Roll Length ] : 30m,30.48m or as per your request
304 Stainless Steel Wire Cloth is the most common stainless alloy used in wire weaving. Excellent corrosion properties and can withstand temperatures of 1100 Degrees F.
304L Stainless Steel Wire Cloth has similar properties as 304ss but lower carbon content to permit better welding.
316 Stainless Steel Wire Cloth has similar properties to 304ss but is stabilized by the addition of Molybdenum for increased resistance to chemical corrosion.
316L Stainless Steel Wire Cloth has similar properties as 316ss but lower carbon content to permit better welding.
Technical parameters

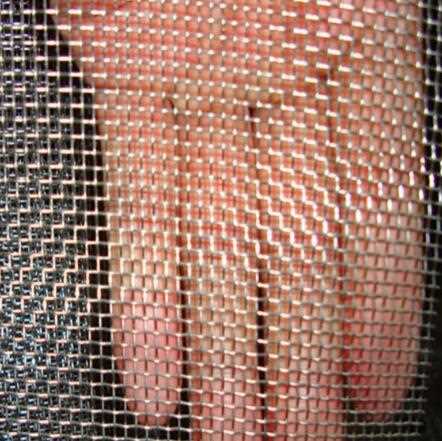

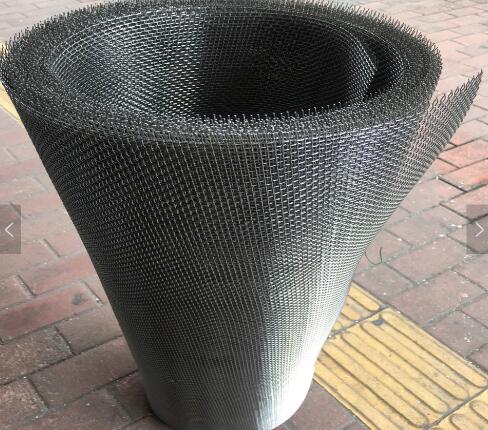

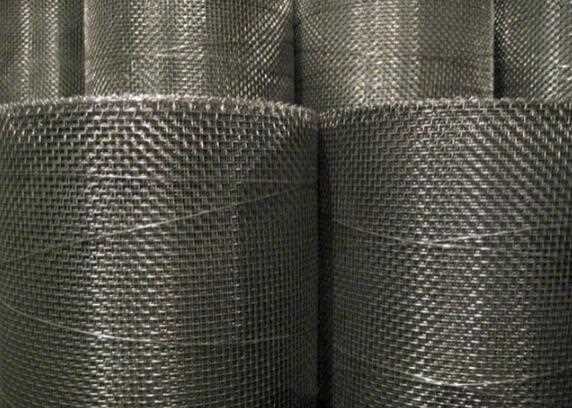

1. Stainless steel wire mesh Plain weave
| Mesh |
Wire dameter(mm) |
Opening(mm) |
Materials(AISI) |
| 7x7 |
1.00 |
2.63 |
304 or 316 |
| 10x10 |
0.60 |
1.94 |
304 or 316 |
| 12x12 |
0.50 |
1.62 |
304 or 316 |
| 16x16 |
0.40 |
1.19 |
304 or 316 |
| 18x18 |
0.35 |
1.06 |
304 or 316 |
| 20x20 |
0.35 |
0.87 |
304 or 316 |
| 24x24 |
0.26 |
0.80 |
304 or 316 |
| 30x30 |
0.30 |
0.55 |
304 or 316 |
| 35x35 |
0.17 |
0.56 |
304 or 316 |
| 40x40 |
0.23 |
0.40 |
304 or 316 |
| 50x50 |
0.20 |
0.31 |
304 or 316 |
| 60x60 |
0.15 |
0.27 |
304 or 316 |
| 70x70 |
0.12 |
0.24 |
304 or 316 |
| 80x80 |
0.13 |
0.19 |
304 or 316 |
2. Stainless steel wire mesh and cloth Twill weave
| Mesh |
Wire diameter(mm) |
Opening(mm) |
Material(AISI) |
| 250X250 |
0.040 |
0.063 |
316 |
| 300X300 |
0.040 |
0.044 |
316 |
| 325X325 |
0.035 |
0.043 |
316L |
| 350X350 |
0.030 |
0.033 |
316L |
| 400X400 |
0.030 |
0.033 |
316L |
| 450X450 |
0.028 |
0.028 |
316L |
| 500x500 |
0.025 |
0.026 |
316L |
3. Stainless steel wire mesh and cloth Dutch weave
| Mesh |
Wire diameter(mm) |
Material(AISI) |
| 12x64 |
0.58x0.40 |
304 or 316 |
| 24x110 |
0.36x0.25 |
304 or 316 |
| 14x88 |
0.50x0.33 |
304 or 316 |
| 30x150 |
0.23x0.18 |
304 or 316 |
| 40x200 |
0.18x0.13 |
304 or 316 |
| 50x250 |
0.14x0.11 |
304 or 316 |
| 80x700 |
0.10x0.08 |
304 or 316 |
| 165x800 |
0.071x0.040 |
304 or 316 |
| 165x1400 |
0.06x0.04 |
304 or 316 |
| 200x1800 |
0.05x0.032 |
304 or 316 |
| 825x2300 |
0.035x0.025 |
316L |
| 400x2800 |
0.030x0.020 |
316L |
Free samples
High-quality products is not the only standard valuing the enterprise. The high-quality service is a key factor.
We control the quality of the products, shorten delivery time to maximize the benefits for customers and report any details to customers.
