Description
- Type: Capping Machine
- Condition: New
- Application: Beverage, Chemical, Food, Medical
- Driven Type: Electric
- Automatic Grade: Automatic
- Voltage: 380V 50HZ
- Power: 2kw
- Packaging Type: Bottles
- Packaging Material: Glass, Plastic
- Place of Origin: Guangdong, China (Mainland)
- Brand Name: YETO
- Model Number: YTC-05
- Dimension(L*W*H): 2000*930*2100mm
- Weight: 750kg
- Certification: CE
- After-sales Service Provided: Engineers available to service machinery overseas
- Capping speed: ≤6000b/h
- Material: Stainless Steel
- Capping type: Screw Capping Locking
- Cap Diameter: 15-70mm
- Applied bottle height: 50-300MM
- spare part: provide
- Function: Automatic capping machine
- Usage: Automatic capping machine
- Warranty: 1year
- Machine Type: Auto Capping Machine

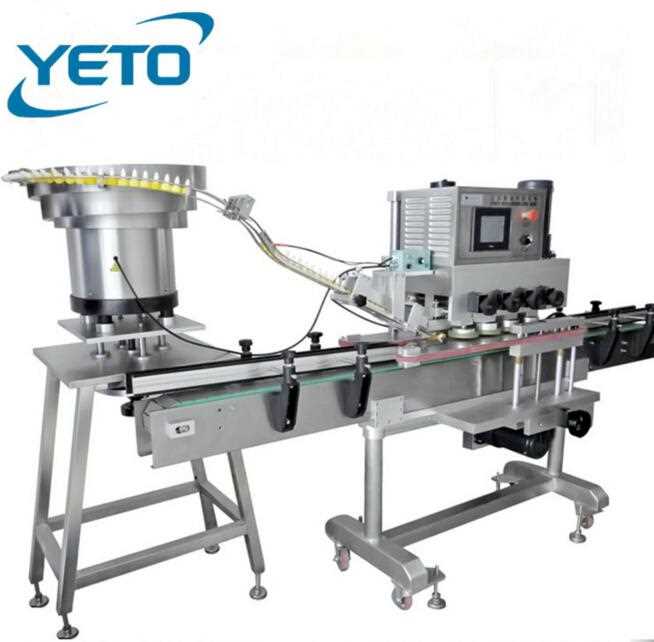

This machine is linear automatic capping machine, four speed motors are used to manage the cap, the cap, capping, conveying, in the capping process can automatically manage the lid, automatic cover lid, automatic capping. Thanks to clip bottle bottle belt holder, synchronous operation the cap, capping, the runtime will not pour bottles. Simple structure, good stability, easy to adjust, no need to replace the specifications of spare parts, can only be adjusted. For food, pharmaceutical, cosmetics, daily chemical, pesticide, chemical industry cylindrical bottle, rectangular flat shaped bottle cap bottle and seal.
PARAMETERS
|
1
|
Speed
|
≤6000b/h
|
|
2
|
Cap size
|
Ø15~Ø70mm
|
|
3
|
Bottle diameter
|
Ø35~Ø140
|
|
4
|
Bottle height
|
50mm~300mm
|
|
5
|
Air pressure
|
3~kg/cm²
|
|
6
|
Air Consumption
|
0.5m³/min
|
|
7
|
Power
|
2kw
|
|
8
|
Auxiliary equipment Power
|
4kw(air compressor)
|
|
9
|
Net weight
|
750Kg
|
|
10
|
size
|
2000mm×930mm×2100mm
|
Linear Capping Machine Device Configuration
|
NO
|
Name
|
Original
|
Brand
|
|
1
|
Pneumatic Components
|
Taiwan
|
YDK
|
|
2
|
Button switch
|
France
|
Schneider
|
|
3
|
Inverter
|
France
|
Schneider
|
|
4
|
Rub cover motor
|
China
|
|
|
5
|
Arrange cap motor
|
China
|
|
|
6
|
Clip bottle motor
|
China
|
|
|
7
|
Bottle conveying motor (optional)
|
China
|
|
|
8
|
Reducer
|
China
|
|
Linear automatic capping machine uses the latest technology to accurately torque most cap types onto a wide range of bottles. Automatic screw cap machine can torque flat caps, flip top caps and a variety of threaded covers at speeds up to 100 cpm. The spindle cappers can handle almost any bottle type or shape including PET, PP, PVC, HDPE, LDPE, and Glass.
The six heads capping machine comes standard as a semi-automatic machine requiring someone to manually place caps on the containers before they are automatically torqued shut. This semi-automatic unit is perfect for re-torquing caps after they have been induction sealed or when the current production requirements do not require the cap placement feature of an automatic unit. As speed or production requirements increase, a centrifugal bowl and cap chute can easily be added upgrading this machine to a fully automatic machine. In the capping process can automatically manage the cap, automatic cover caps, automatic capping.Simple structure, good stability, easy to adjust, no need to replace the specifications of spare parts, only need be adjusted.
Features
Stainless steel construction
Intelligent electronic torque control
Individual spindle set speeds
Power height adjustment
Tapered bottle gripper adjustment
Stainless steel spindle shafts
C Frame, which allows for use with virtually any conveyor line
Single adjustment spindle set centering
Spring loaded spindles for continuous cap contact
Options
Conveyor
Automatic feed system
