Rice Mill Milling Machine For Home Use

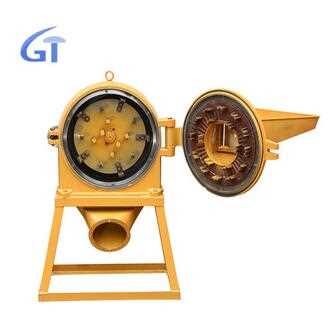

This machine consists of feed hopper,rotor,crushing chamber,fixed tooth plate,powder mesh,main case,case frame and other parts.

Product Details Company Profile

Description

This machine consists of feed hopper,rotor,crushing chamber,fixed tooth plate,powder mesh,main case,case frame and other parts. When material averagely feed from the inlet hopper into the crushing chamber,the tooth claw(hammer) under the action of high speed with strong bump rub,quickly break into the fine powder,and then under the effect of centrifugal force and air flow,the powder discharges through the outlet.
With advantage of high-yield(≥350kg/h),reliable appearance,easy-operation and maintaining low-energy consumption(≤18KW.h/t),and low noise.9FZ-29 is widely used in plant and factory for grinding corn,grains,bean,spices and herbs.

Technical Parameter

Model	Great JGFSC-29-2
Main Shaft Speed	4500r/min
Diameter of rotor	290mm
Diameter of sieve circle	330mm
Sieve circle size	1050×120
Capacity	350kg/h
Flat Teeth	4 pcs
Square Teeth	6 pcs
Consumption	≤18KW.h/t
Voltage	380V
Match Power	5.5KW
Accessory	Hopper Screen circle&piece 2 Sets
Product Size	720x460x840
Package Szie	410x385x530
Weight	45kg
Certification	JB/T6270-2013
