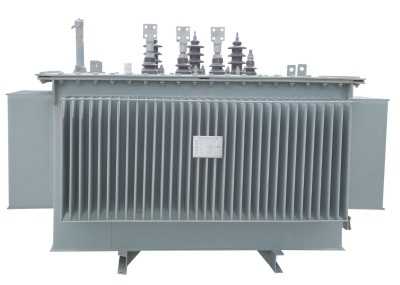

◆  Introduction to the product
·Transformer can transform net voltage lnto needed system or load voltage, in order to tranfer and distribute electric power. Amorphous distribution transformer can takereplace of lamination core transformer and widely applied among in outdoor distributionsystem. This type transformer can save energy and reduce air pollution during operation,what’s more, it especially caters for the environment where lack of electric power, bigload fluctuation and hard daily maintenance. Because of the omniseal stucture of thetransformer, the insulation oil and medium won’t be polluted by the air, it can be applied inheavy humid environment. That’s why amorphous distribution transformer is an ideal distribution equipment among urban and rural distribution network.
◆  Product characteristics
·The core of amorphous distribution transformer is rolled of amorphous strip material,its no-load loss is less 75% than S9 series.
·The low voltage winding of amorphous distribution transformer adopts copper foil, which increase the ability of short-circuit.
·The connection group of this transformer is Dyn11, which can reduce the effect caused by harmonic wave and improve the power supply quality.
·Pouring oil the vacuum would banish bulb in the winding, which can stable the insulation ability.
·Before leaving the factory every transformer done full-wave lightning impulse test at a voltage 25% higher than national standard to insure the transformer
 in motion safely.
◆ Pass the short-circiut test Because the ability to endure mechanical force of core of amorphous distribution transformer is weak, is it a difficult problem in the transformer manufactuing area to pass the short-circuit test. While our company successfully overcome this problem, we designed and exploited SBH15-M-2500/10 distribution transformer by oureslves. What’s more, we passed the short-circuit test through China National Transformer Quality Supervision Testing Center, which indicated that our design and manufactury technology for amorphous distribution transformer has a leading level in th world.
◆ Accord to Standards
GB1094.1-1996   GB1094.2-1996
GB1094.3-2003   GB1094.5-2003
GB311.1-1997    JB/T10318-2002
Q/SIHG1-1999 Amorphous Omniseal lron-core Three-phase Oil-immersed Distribution Transformer type SBH15-M IEC60076 power Transformer
ANSI/C57.12.00 Oil-immersed Distribution Transformer, Power Transformer, Voltage Regulating Transformer General Technical Reqiest
