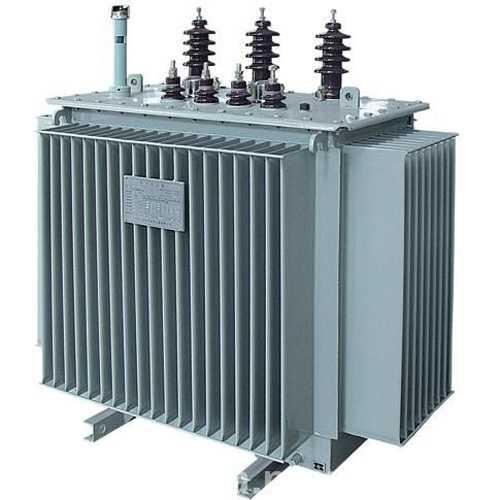

S11 10KV 100KVA Energy-saving 3 phase oil immersed transformer

S11-M full-sealed oil-immersed power transformer developed by the company has the advantages of low loss,low noise and high efficiency and can achieve good energy-saving effect and reduce pollution.

Product Details Company Profile

Description

Place of Origin: Henan, China (Mainland)
Brand Name: Dahua
Model Number: S11-M-100/10
Usage: Power
Phase: Three
Coil Structure: Toroidal
Coil Number: Autotransformer
Color: Optional
Type: Oil Immersed
Certification: ISO9001:2008
Material: Copper/Alumnium
Frequency: 50/60Hz
Rated capacity: 100kva
Standard: GB/T19001-2008
High voltage: 10kv
Low voltage: 0.4kv
Cooling method: ONAN

S11-M full-sealed oil-immersed power transformer developed by the company has the advantages of low loss,low noise and high efficiency and can achieve good energy-saving effect and reduce pollution.
Compared with common oil-immersed transformer ,it is unnecessary for full-sealed transformer to be equipped with oil conservator and change in oil volume is automatically adjusted and compensated by elasticity of corrugated sheet of corrugated tank , and transformer is isolated from air to prevent and slow down oil degrading and insulation aging,enhance operational reliability,with normal operation and no maintenance.
