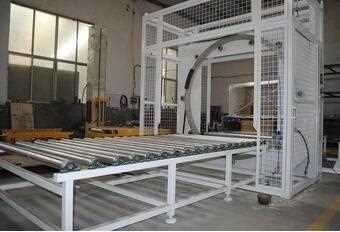

S450 Series Horizontal stretch wrapper/stretch wrapping machine

Horizontal stretch pallet wrapper(stretch wrapping machine, pallet wrapping machine, wrapping machine,machine,pallet wrapper,machine, brick wrapping machine, packing machine, auto wrapping machine).

Description

  • Type: Wrapping Machine
  • Condition: New
  • Application: Horizontal stretch wrapping machine
  • Packaging Type: Horizontal stretch wrapping machine
  • Packaging Material: Plastic
  • Automatic Grade: Automatic
  • Driven Type: Electric
  • Voltage: 380v/220v
  • Power: 0.75KW
  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: Dyehome
  • Model Number: S450
  • Weight: 700kgs
  • Certification: CE
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Hot search: Horizontal stretch wrapper,stretch wrapping machine
  • OEM service: Yes
  • Customised machine: Yes
  • Color: As you required
  • Equip with conveyor: Yes



Detailed Product Description.

Horizontal stretch pallet wrapper(stretch wrapping machine, pallet wrapping machine, wrapping machine,machine,pallet wrapper,machine, brick wrapping machine, packing machine, auto wrapping machine).



Horizontal stretch pallet  Wrapper is used to wrap products that wont fit on a turntable, require banding, compression extra packing for shipment.pallet wraping machine has a proven record of success in many industries such as profiled product, tubular product and plank stuff etc. We offers a wide variety of options to meet your specific requirements. Each application is evaluated to provide the right solution to your needs.



Introduction:

For long products:door, window, timbers, profiles, pipes, furniture, wood panels etc..

Wrapping way: Overall wrapping(total closed) or sleeve wrapping(leave two holes in top and bottom).

Wrapping material: Stretch film or PE foam material  .

Protect the product aginst dust and moisture. Easy to transport and storage.



 TECHNICAI DATA:

Items

GG500

GG800

GG1000

GG1600

Package width

100-500mm

100-800mm

100-1000mm

100-1600mm

Package length

Not limited

Not limited

Not limited

Not limited

Conveyer length

9000mm*2

Or on request

9000mm*2

Or on request

9000mm*2

Or on request

9000mm*2

Or on request

Conveying speed

About 8m/min

About 7m/min

About 6m/min

About 4m/min

Rotating speed

About 60r/min

About 50r/min

About 45r/min

About 30r/min

Conveyer height

800mm

1000mm

1000mm

1200mm

Max loading

2000kg

3000kg

4000kg

5000kg

Overlap scope

About 30%-70%

About 30%-70%

About 30%-70%

About 30%-70%

Power output

About 7kw

About 9kw

About 12kw

About 16kw

Power voltage

380V/3phase/50Hz

380V/3phase/ 50Hz

380V/ 3phase/50Hz

380V/3phase/50Hz

Material

Compound paper tape/knit tape/anti-rust tape/waterproof tape/

stretch film/flax

Compound paper tape/knit tape/anti-rust tape/waterproof tape/

stretch film/flax

Compound paper tape/knit tape/anti-rust tape/waterproof tape/

stretch film/flax

Compound paper tape/knit tape/anti-rust tape/waterproof tape/

stretch film/flax

Material size

width:≤250mm

Max OD:400mm

ID:55mm

width:≤250mm

Max OD:400mm

ID:55mm

width:≤250mm

Max OD:400mm

ID:55mm
