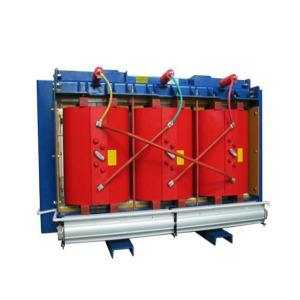

SC(B)-200KVA/6kv 200KVA 6kv two windings dry type transformer

Professional solution: supply professional completed solution base on your technical requirements, to complete your technical plan. Insulaion level: F Vector group: Dyn11 or Yyn0 Tap range: ±5% or ±2*2.5%

Product Details Company Profile

Description

Place of Origin: Zhejiang, China (Mainland)
Brand Name: TRANS
Model Number: SC(B)-200KVA/6kv
Usage: Power
Phase: Three
Coil Structure: Toroidal
Coil Number: two winding
Cooling method: AN
Coil material: Aluminum or Copper
Frequency: 50 or 60 Hz
Iron core: new grain oriented silicon steel sheet
Insulaion level: F
Vector group: Dyn11 or Yyn0
Tap range: ±5% or ±2*2.5%

Our Services

1. Pre-Sale Service

- Quick response: reply you within 8 hours, to save your time.

- Professional solution: supply professional completed solution base on your technical requirements, to complete your technical plan.

- Quotataion: submit a competitive price within 2 days, to promote your business

2. In Sale Service

- Supplying stipulated completed drawings

- Supplying manufacturing plan and processing photos

- Making the test plan and book hotel for the witness person

- Making good arrangement of the delivery and shipment

3. Afer Sale Service

- Supplying professional supervision and commissioning within 15 days

- Training the workers

- Providing 12 months warranty of quality and performance

Main Technical Parameters of 10kV SC(B) -30-2500 KVA three winding epoxy cast resin dry type transformer

Rated power (kVA)	High Voltage (kV)	H.V Tap range	Low Voltage (kV)	Connection Symbol	Short-Circuit Impedance (%)	No-load Loss (W)		On-Load Loss (W)		No-load Current (%)	Insulation Class	Noise (dB)	Weight (kg)	Overall dimension(mm)			Gauge (mm)
Rated power (kVA)	High Voltage (kV)	H.V Tap range	Low Voltage (kV)	Connection Symbol	Short-Circuit Impedance (%)	SC(B) 9	SC(B) 10	SC(B) 9	SC(B) 10	No-load Current (%)	Insulation Class	Noise (dB)	Weight (kg)	L	W	H	Gauge (mm)
30	6 6.3 10 10.5 11	±5% OR ±2×2.5%	0.4	Yyn0 Dyn11	4	220	190	750	710	2.3	F	40	330	990	660	760	550×550
50						310	270	1060	1000	2.2		40	360	1000	660	790	550×550
80						420	370	1460	1380	1.7		40	470	1050	660	820	550×550
100						450	400	1670	1570	1.7		40	520	1080	660	860	550×550
125						530	470	1960	1850	1.5		41	620	1120	760	900	660×660
160						610	540	2250	2130	1.5		42	790	1200	760	950	660×660
200						700	620	2680	2530	1.3		42	880	1240	820	1100	660×720
250						810	720	2920	2760	1.3		44	1000	1100	820	1160	660×720
315						990	880	3670	3470	1.1		46	1120	1110	820	1240	660×720
400						1100	980	4220	3990	1.1		46	1360	1130	820	1360	660×720
500						1310	1160	5170	4880	1.1		47	1460	1140	820	1430	660×720
630						1510	1340	6220	5880	0.9		47	1530	1280	820	1350	660×720
630					6	1460	1300	6310	5960	0.9		47	1570	1280	820	1300	660×720
800						1710	1520	7360	6960	0.9		48	1850	1290	820	1430	660×720
1000						1990	1770	8610	8130	0.9		48	2320	1420	960	1480	820×910
1250						2350	2090	10260	9690	0.9		49	2690	1430	960	1620	820×910
1600						2760	2450	12400	11730	0.9		50	3130	1460	960	1750	1070×910
2000						3400	3050	15300	14450	0.7		52	3600	1900	###	1940	1070×1205
2500						4000	3600	18180	17170	0.7		55	4560	2030	###	2020	1070×1205
Note: All listed parameters just for your reference, the final data will be based on the drawing of our products,meanwhile they can be adjusted as per customers' requirement.
