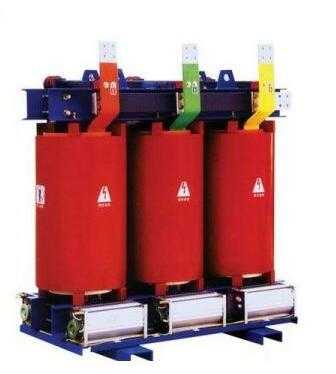

SC(B) 6-35KV dry type resin insulated distribution transformers

Dry type resin insulated SC(B)11, SC(B)10, SC(B)9 distribution transformers are widely used for power supply & distribution in industrial and civil occasions. Tapping range: 5%, 2x2.5%, Power Capacity: 10-4000kVA Frequency: 50Hz or 60HZ

Product Details Company Profile

Description

Dry type resin insulated SC(B)11, SC(B)10, SC(B)9 distribution transformers are widely used for power supply & distribution in industrial and civil occasions, to step down grid voltage (6-35KV) to line voltage 400V. The transformers are resin insulated, which is safe, non-pollute, flame proof and can be installed directly on the load centre, with the merits of free maintenance, easy installation, low operation cost, low loss and excellent humidity resistance.

Main application in: High-rise buildings, airports, terminals, power plants, transformer stations, residential areas or packages of various sites.

Product standard: IEC60076 & GB/T10228, GB109411, GB4208, GB6450

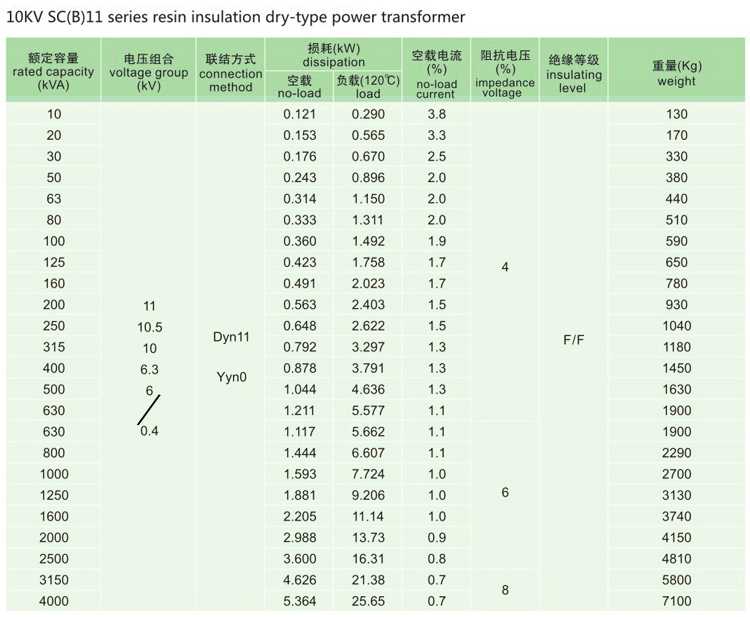

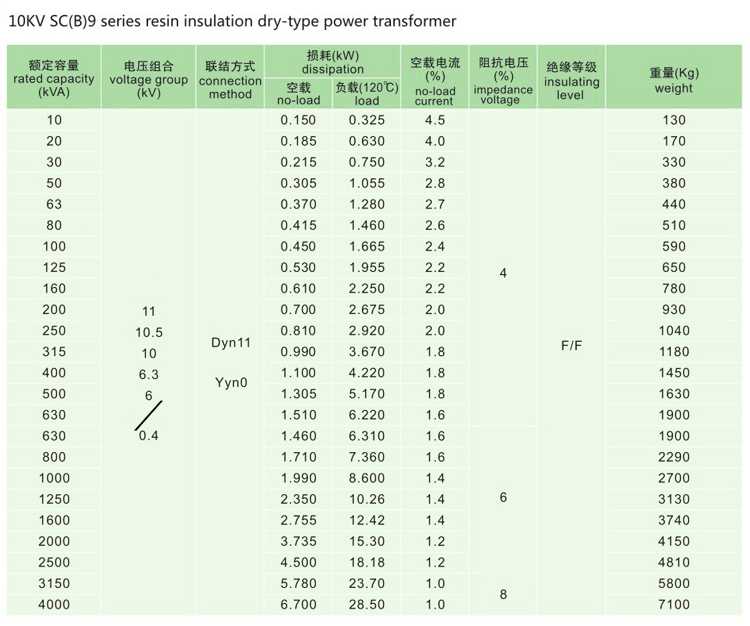

Main Specifications：

1. Voltage class: 6-35KV

2. Model of voltage regulation: Off-excitation or on-load tap changer

3. Tapping range: 5%, 2x2.5%,

4. Power Capacity: 10-4000kVA

5. Frequency: 50Hz or 60HZ

6. Phase No.: Single phase or three phase

7. Vector Group: Yyn0 or Dyn11

8. Impedance voltage: 4~8%

9. Service condition: 100% relative humidity, ambient temperature not more than 40ºC or according to customers' requirements
