SCB10 50Hz Epoxy Resin Two-winding Dry Type Power Transformer

Please specify the product model, rated capacity, HV/LV rated voltage and high-voltage tapping range, phase number, frequency, connection group symbol and so on in the order. Shape of Core: Ring; Trademark: CNHK; Specification: COPPER.

Product Details Company Profile

Description

Model NO.: SCB10
Phase: Three
Cooling Method: Oil-immersed Type Transformer
Certification: ISO9001-2000, ISO9001, CCC
Frequency Characteristics: 50Hz
Brand: CHINT
Transport Package: Wooden Package
Origin: Made in China

Application: Power, Electronic, Lighting, Rectifier, Audio
Core: Core-type Transformer
Winding Type: Two-winding Transformer
Usage: Rectifier Transformer, Combined Transformer, Power Transformer, Distribution Transformer
Shape of Core: Ring
Trademark: CNHK
Specification: COPPER
HS Code: 8504220000

General Description

Application: for power distribution system and large industrial enterprises, etc.

Standards: IEC 60076-11

Parameters: Rated Voltage: 6KV 6.3KV 10KV 10.5KV 11KV

Rated Capacity: 30-3150kVA.

Features: 1.High security and reliability in operation.
                   2.Economic and efficient to reduce network loss and working cost.
         3.Low temperature rise.
         4.Low noise.
         5.Operation in moist place with high moisture-proof capability.
         6.Customized transformers are available on your requirement

Service conditions
>>Installation height: altitude shall not exceed 1000m
>>Ambient temperature: -40ºC~40ºC

Dimension & SchematicTechnical parameters

1. Model No: SCB11 outdoor transformer
2. Phase: 3phases

Dry type transformer Technical parameter table
nominal capacity	Voltage combination			Join group label	No-load loss(W)	load loss(W)	No-load current(%)	Short circuit impedance(%)
nominal capacity	HV(KV)	High voltage range	LV(KV)	Join group label	No-load loss(W)	load loss(W)	No-load current(%)	Short circuit impedance(%)
30	6 6.3 6.6 10 10.5 11	±5%	0.4	Dyn11/ Yyn0	175	670	2.72	4.0
50					245	950	2.38
80					335	1310	2.21
100					360	1500	2.04
125					425	1755	1.86
160					495	2020	1.87
200					565	2400	1.70
250					650	2620	1.70
315					795	3300	1.53
400					885	3790	1.53
500					1050	4640	1.53
630					1215	5585	1.36
630					1170	5665	1.36	6.0
800					1370	6610	1.36
1000					1600	7720	1.19
1250					1885	9210	1.19
1600					2210	1150	1.19
2000					2990	13730	1.02
2500					3600	16320	1.02

Our transformers sell well all over the world. We have won a good reputation among customers at home and abroad. We will do our best to provide more high-quality products and services for you in the future!
•Application Of Products

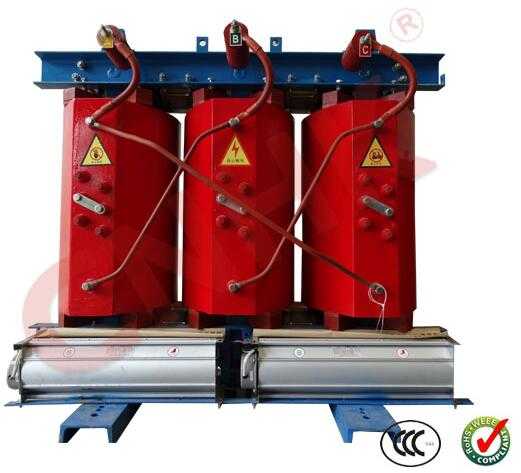

      Our SC(B) series epoxy resin cast dry transformer is cast under vacuum with thin insulating bands automatically . The core is made of high-permeable grain-orientated silicon sheet and cast with imported epoxy resin. Thanks to advanced technology, quality raw materials , scientific management, and perfect inspection means ,our products have the following features:
        The coil is reinforced with glass fiber and cast under vacuum with filler epoxy resin. It has good mechanical properties, is free of crack and inner bubble and has low local discharge, high reliability, and long service life.
        The high-and low-voltage systems are cast under vacuum, thus the coil will not absorb moisture; the clamps of core are subjected to corrosion-resistant treatment and it may run under high temperature or other serious environments.
        Flame retardancy , explosion-proof and no environmental contamination. The insulating materials in the coil such as glass fiber are self-extinguishing and they will not cause fire by the arc resulted from short-circuit . The resin will not generate toxic or harmful gas under high temperature.
         Gas duct is embedded inside it to enhance the radiation power and over-load capacity.
         Low loss and low noise. The core is lapped with 45 full-miter and the step-type lamination effectively improves distribution of magnetic flux at core corners, and greatly reduces the no-load loss and the nose level.
         It highly withstands short-circuit and lightning impact.
        Small in volume, light in weight, safe in running and free of maintenance.
       As per users' requirements the transformer may be provided with casing and blower fan.

SCB10 50Hz Epoxy Resin Two-winding Dry Type Power Transformer
